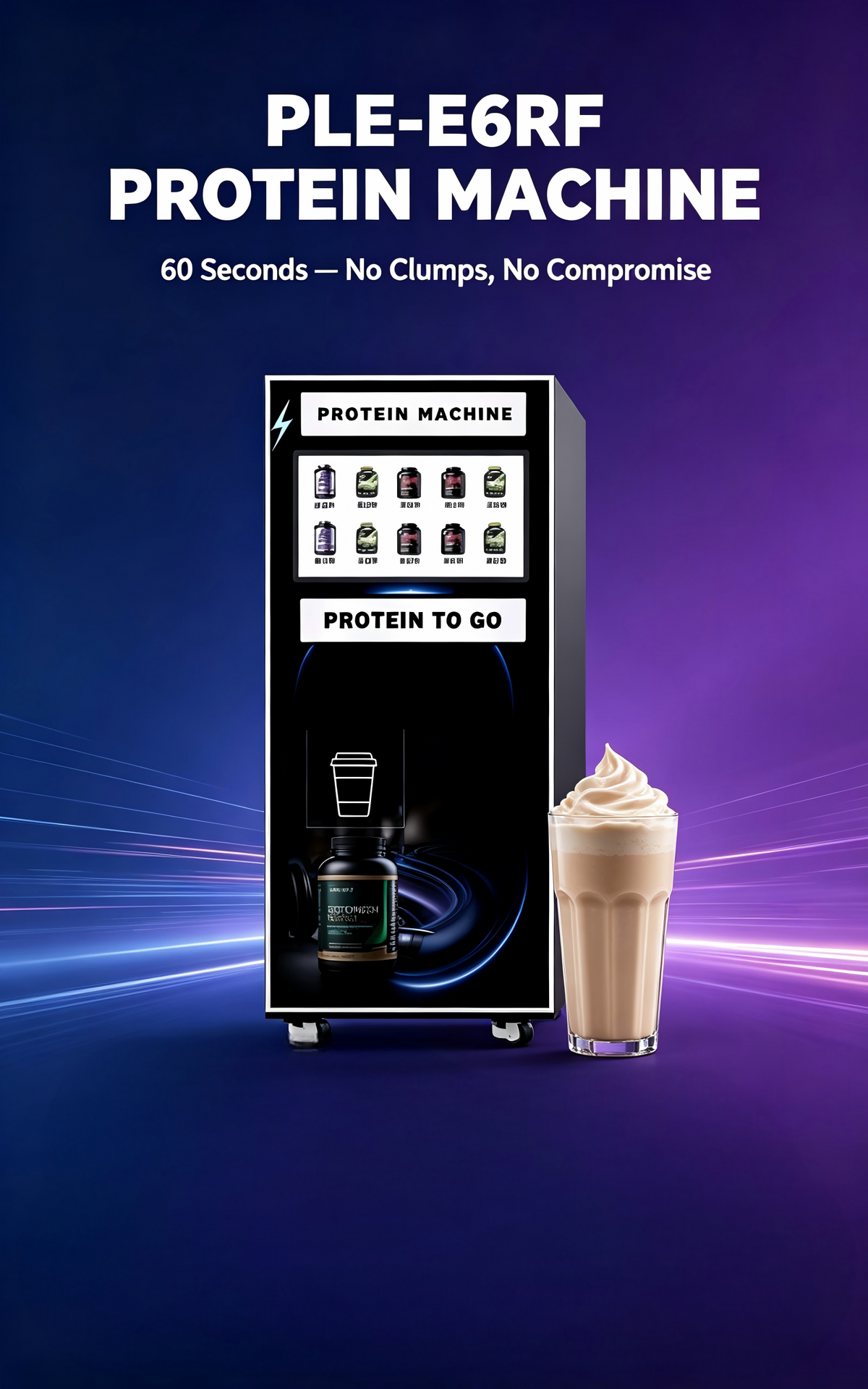

PLE-E6RF Commercial Protein Powder Vending Machine

10 Flavors. Freshly Mixed in 60 Seconds. Built for 24/7 Self-Service.

Turn protein nutrition into a convenient, scalable self-service business.

The PLE-E6RF Commercial Protein Powder Vending Machine is designed for gyms, fitness centers, 24-hour gyms, universities, offices, shopping centers, and other high-traffic locations where customers want convenient access to protein drinks without waiting for staff.

With 10 independent powder hoppers, 60-second drink preparation, in-cup high-speed mixing, automatic cleaning, a 21.5-inch touchscreen, and optional cashless payment integration, the PLE-E6RF makes it easier to offer fresh protein shakes while reducing the need for on-site labor.

More than a traditional vending machine, it is a self-service protein nutrition station designed for commercial operation.

Why Choose the PLE-E6RF?

10 Independent Powder Hoppers — Give Customers More Choices

Offer up to 10 different protein powder flavors or formulations from a single machine.

Each hopper is independently configured and holds approximately 1.8 kg of powder, allowing operators to create a wider menu for different customer preferences.

Popular options can include:

• Chocolate
• Vanilla
• Strawberry
• Peanut Butter
• Cookies & Cream
• Coffee
• And other protein or sports nutrition formulations

Independent powder compartments help reduce flavor carryover between selections and make it easier to manage multiple products from one compact commercial machine.

One machine. Ten powder options. More opportunities to increase customer choice and repeat purchases.

Fresh Protein Shakes in About 60 Seconds

Customers don't want to wait in line for a freshly prepared protein drink.

The PLE-E6RF is engineered for approximately 60 seconds per serving, making it well suited to high-frequency environments such as gyms, fitness centers, campuses, and 24-hour facilities.

The system dispenses the selected powder and water directly into the serving cup, followed by high-speed in-cup mixing.

The result is a freshly mixed protein drink prepared automatically at the point of purchase.

Designed for Self-Service

1. Select a protein flavor on the touchscreen
2. Complete payment
3. The machine dispenses the selected ingredients
4. The drink is mixed directly in the cup
5. The customer receives a freshly prepared protein shake

No staff member is required for every transaction.

In-Cup High-Speed Mixing — A Better Alternative to Traditional Shaking

Traditional protein drinks often depend on manual shaking or blending equipment.

The PLE-E6RF uses high-speed in-cup mixing with XY-axis movement to mix the powder and water directly inside the serving cup.

This automated process helps create a smooth and consistent drinking experience while reducing the need for manual preparation.

For commercial operators, it also means a more standardized preparation process across different locations.

Consistent preparation. Less manual work. A better self-service experience.

Automatic Cleaning After Every Serving

Hygiene and maintenance are critical when operating a commercial protein powder vending machine.

The PLE-E6RF is designed with an automatic cleaning cycle after each serving, helping clean the mixing components and water pathways after dispensing.

This reduces the amount of routine manual cleaning required and helps operators maintain a more consistent machine environment during daily operation.

Designed for Commercial Convenience

• Automatic cleaning after each serving
• Reduced manual cleaning requirements
• Automated mixing process
• Less dependence on on-site staff
• Suitable for extended self-service operation

For busy gyms and 24-hour facilities, reducing daily maintenance work can make a significant difference to operating efficiency.

21.5-Inch Interactive Touchscreen

The large 21.5-inch touchscreen creates a modern self-service experience.

Customers can easily browse available protein flavors, select their drink, and complete the purchase through an intuitive digital interface.

The large display also provides valuable space for:

• Product information
• Flavor selection
• Promotional offers
• Pricing
• Brand messaging
• Upselling opportunities
• Customer instructions

For operators, the touchscreen is more than a control panel — it can become a digital sales and marketing platform.

Smart Cloud Management for Multi-Location Operators

Managing multiple vending machines manually can quickly become inefficient.

The PLE-E6RF can be integrated with a cloud-based management system to help operators monitor machine performance remotely.

Depending on the configured system, operators can access functions such as:

• Remote machine monitoring
• Sales statistics
• Inventory alerts
• Product shortage notifications
• Price management
• Cup shortage alerts
• Equipment status monitoring
• Remote maintenance support
• OTA software updates

Instead of visiting every machine to check its operating condition, operators can manage their vending network from a centralized platform.

One Platform. Multiple Machines. Smarter Operations.

This makes the PLE-E6RF especially suitable for operators building a fitness vending machine network or deploying equipment across multiple gyms, campuses, offices, and commercial locations.

Built for Gyms, 24-Hour Fitness Centers & More

The PLE-E6RF is designed around real commercial environments where customers need convenient nutrition without depending on staff availability.

🏋️ Gyms & Fitness Centers

Place the machine near the workout floor, reception area, or exit to give members convenient access to protein drinks before or after training.

🌙 24-Hour Gyms

Members can purchase protein drinks even when reception staff are unavailable.

The self-service design allows the machine to continue serving customers outside normal staffed hours.

🎓 Universities & College Campuses

Serve students looking for convenient sports nutrition near fitness centers, student recreation facilities, or high-traffic campus locations.

🏢 Corporate Offices

Offer a convenient protein nutrition option for employees without requiring a staffed café or dedicated food-service counter.

🛍️ Shopping Centers

High-foot-traffic environments create opportunities for convenient, impulse-oriented nutrition purchases.

🚉 Transportation Hubs

Provide travelers with a quick and convenient nutrition option without requiring a traditional food-service operation.

Designed for Operators — Not Just Customers

A successful Protein Powder Vending Machine needs to work for both sides of the transaction.

Customers want:

Choice + Speed + Convenience + Consistency

Operators want:

Low Labor + Easy Maintenance + Remote Management + Scalable Deployment

The PLE-E6RF is designed around both requirements.

Commercial-Grade Capacity & Configuration

The PLE-E6RF combines a large commercial footprint with an integrated self-service system.

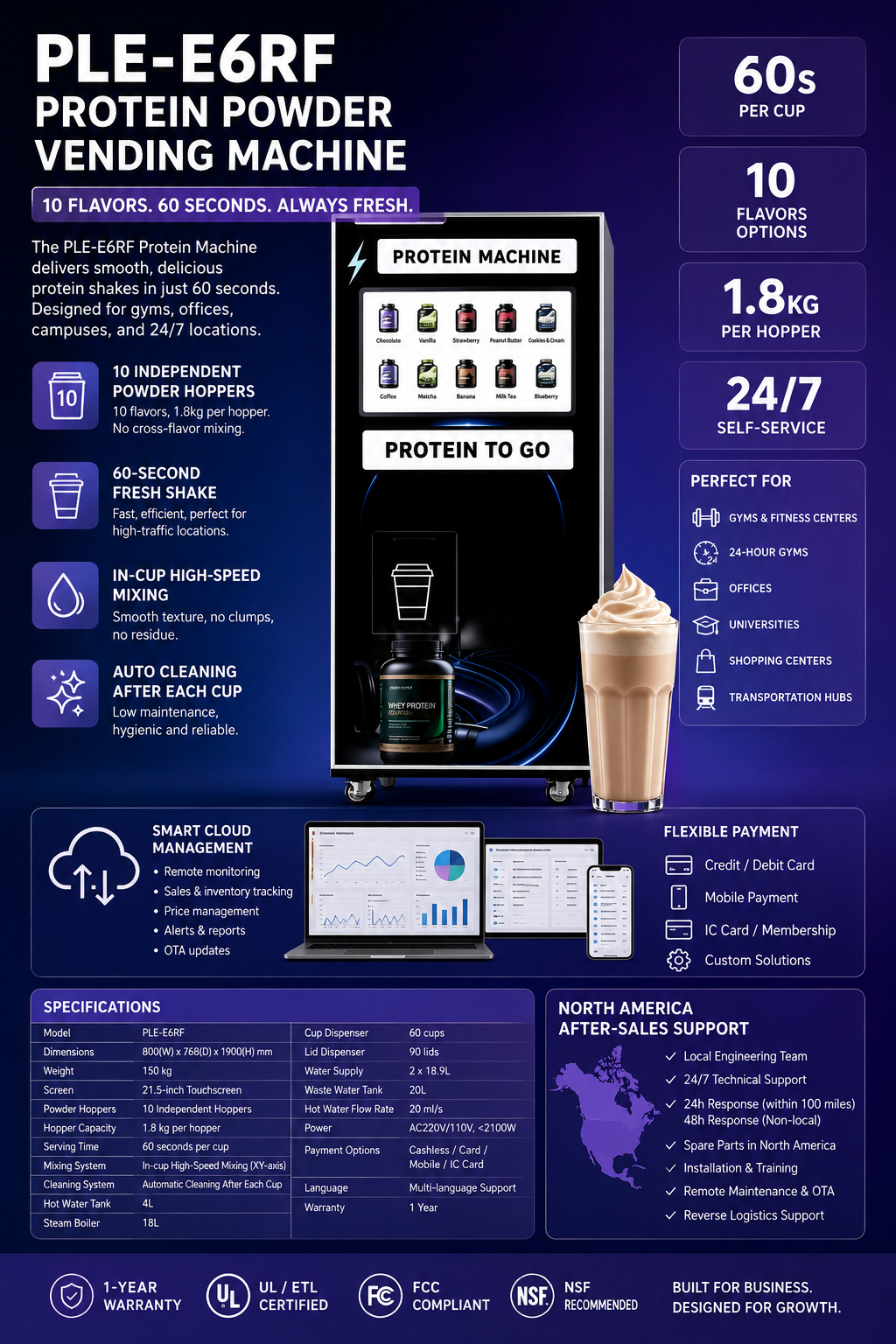

Technical Specifications

Model: PLE-E6RF
Machine Dimensions: 800 × 768 × 1900 mm
Approx. Dimensions: 31.5 × 30.2 × 74.8 in
Machine Weight: 150 kg / approx. 331 lb
Display: 21.5-inch touchscreen
Powder Hoppers: 10 independent hoppers
Hopper Capacity: Approx. 1.8 kg per hopper
Serving Time: Approx. 60 seconds per serving
Mixing System: High-speed in-cup mixing, XY-axis movement
Cleaning: Automatic cleaning after each serving
Hot Water Tank: 4 L
Steam Boiler: 18 L
Cup Capacity: 1 cup dispenser / approx. 60 cups
Lid Capacity: Approx. 90 lids
Hot Water Flow Rate: 20 ml/s
Water Supply: 2 × 18.9 L water containers
Waste Water Tank: 20 L
Rated Power: AC 220V / 50Hz / <2100W / <10A
Voltage Options: 110V / 220V
Payment: Cashless payment options available for export configurations
Language: Customizable; major languages supported
Warranty: 1 year

Specifications may vary depending on final configuration, market requirements, payment system, and customization.

Built for the U.S. Market

For American operators, purchasing commercial equipment is about more than the machine itself.

You also need to consider:

Electrical requirements. Payment systems. Compliance. Installation. Maintenance. Spare parts. Technical support.

That's why we offer support beyond equipment manufacturing.

For U.S. market projects, we can assist with:

• Equipment certification consultation
• Certification application support
• Testing coordination
• Electrical configuration
• Payment system integration
• Communication module configuration
• Installation and commissioning
• Technical training
• Remote troubleshooting
• Spare parts support

Depending on the final machine configuration and market application, certification requirements may include UL, ETL, FCC, and food-equipment related requirements such as NSF.

Certification requirements can vary by configuration, installation location, and local authority. Our team can help partners evaluate the applicable requirements before deployment.

North American After-Sales Support

Your Machine Should Never Be "On Its Own."

One of the biggest concerns when purchasing commercial vending equipment overseas is what happens after the machine arrives.

Who installs it?

Who troubleshoots it?

Where do replacement parts come from?

What happens if the machine stops working?

We understand these concerns.

Our North American service support is designed to help commercial partners operate PLE-E6RF machines with greater confidence.

Local Technical Support

Professional engineering and technical support resources are available in North America for equipment inspection, troubleshooting, maintenance, and technical issues.

Fast Response

For service locations within approximately 100 miles, target response is within 24 hours.

For non-local service requests, target response is within 48 hours.

7×24 Support

Technical support is available around the clock throughout the year for qualifying service arrangements.

North American Spare Parts Support

Key replacement components can be stocked in North America, including commonly serviced parts such as:

• Mixing components
• Powder hopper components
• Touchscreen components
• Payment modules
• Other critical wear or replacement parts

This helps reduce downtime and avoid unnecessary international shipping delays.

Installation & Commissioning

Support can include:

• Machine installation
• System commissioning
• Payment system integration
• Communication module configuration
• Basic operator training

Remote Maintenance

Remote monitoring and troubleshooting capabilities can help identify equipment issues more quickly.

Depending on system configuration, remote services may include:

• Equipment status monitoring
• Fault alerts
• Operational data monitoring
• Remote troubleshooting
• OTA software updates

Refurbishment & Reverse Logistics

For applicable projects, reverse logistics support can include equipment return, repair, relabeling, and refurbishment.

One Machine. Multiple Revenue Opportunities.

The PLE-E6RF can be more than a simple protein dispenser.

For gym owners, fitness chains, vending operators, distributors, and commercial facility operators, it creates an opportunity to build a self-service sports nutrition business model.

Potential revenue opportunities include:

Protein shakes + Sports nutrition + Multiple flavors + Promotional products + Brand partnerships

Operators can customize the product menu according to customer demand and location.

A gym with a strong bodybuilding community may emphasize high-protein products.

A university location may focus on convenient, affordable nutrition.

An office location may prioritize healthier beverage choices.

A multi-location vending operator can use centralized management to adjust pricing, products, and promotions based on actual sales performance.

Who Is the PLE-E6RF For?

The PLE-E6RF is particularly suitable for:

• Gym owners
• Fitness center operators
• 24-hour gym chains
• Fitness franchises
• Vending machine operators
• Sports nutrition distributors
• University campuses
• Corporate offices
• Shopping centers
• Commercial property operators
• Fitness equipment distributors
• Entrepreneurs building unattended retail businesses

If you are looking for a commercial protein powder vending machine for a gym, a protein shake vending machine for a 24-hour fitness center, or a sports nutrition vending machine for multi-location deployment, the PLE-E6RF is designed for this type of application.

Why Buy From a Factory Partner?

Choosing a vending machine supplier is not only about the purchase price.

For a commercial deployment, the real cost of ownership depends on:

Reliability + Maintenance + Spare Parts + Software + Installation + Technical Support + Long-Term Partnership

As a factory-based partner, we can support customers from initial equipment configuration through deployment and after-sales service.

We can also discuss customization options for:

• Machine appearance
• Brand graphics
• Touchscreen interface
• Languages
• Payment systems
• Voltage configuration
• Communication modules
• Product configuration
• Software functions
• Market-specific requirements

Whether you need one machine for a local gym or a larger deployment across multiple locations, we can work with you to develop the appropriate configuration.

Ready to Build Your Protein Vending Business?

The market for convenient sports nutrition is expanding beyond traditional supplement stores.

Customers are looking for fast, convenient, self-service access to protein drinks.

Gym owners want to provide more member services without adding significant labor.

Vending operators want equipment that can be monitored and managed remotely.

The PLE-E6RF brings these requirements together in one commercial self-service solution.

PLE-E6RF Protein Powder Vending Machine

10 Independent Flavors | Approx. 60-Second Fresh Mixing | Automatic Cleaning | 21.5" Touchscreen | Cloud Management | Cashless Payment Options | North American Service Support

Whether your goal is to add a protein station to an existing gym, build a fitness vending machine network, or develop a new unattended sports nutrition business, the PLE-E6RF is ready for commercial deployment.

Request Pricing & Commercial Information

Contact us for:

• Machine pricing
• Bulk order pricing
• 50+ unit project discounts
• U.S. market configuration
• Payment system options
• Branding customization
• Certification support
• Installation support
• Spare parts
• North American after-sales service
• Distributor & dealer cooperation

Bring fresh protein nutrition closer to your customers — and turn unused floor space into a self-service revenue opportunity.
