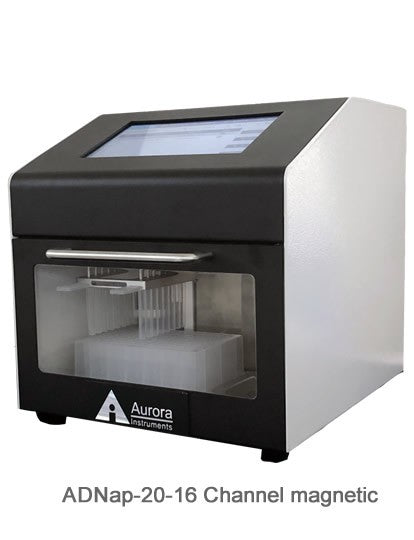

ADNap 20 Automated nucleic acid extraction system

1.a fully automated bench top system for high-throughput extraction of nucleic acids from a variety of sources.

relies on an automated 16/32/96-channel magnetic head for reliable and rapid extraction of high-quality nucleic acids.

3.open and flexible.

Principle

The ADNap 20 uses a 16/32/96-channel head of magnetic bars combined with disposable tip combs to mix and transfer magnetic beads.

The magnetic bars move up and down, allowing mixing of the reagents and beads following lysis.

Once the magnetic beads collect at the bottom of the tip comb (that surrounds the magnetic rods) the magnetic head moves to a different plate and the beads are released into the new plate by moving the magnetic rods out of the tip comb.

This process is repeated for bead washing and elution steps.

Applications

Extracted nucleic acids can be used for a number of applications including

High throughput genomic applications such as next generation sequencing.
Processing samples for genetic testing
Microbiome research including infectious diseases.
Drug development.

Features and Benefits

Compact bench top system

High quality and reproducibility

Open and flexible system.

Easy to use touch-screen interface.

Stores up to 1000 different programs

Heating blocks (up to 90 ^oC)

Built-in UV lamp combined with the use of disposable magnetic tip combs and extraction tubes delivers effective and decontamination

Automated ADNap 20 Nucleic Acid Extraction System for Scientific Research Pre-Order Only
