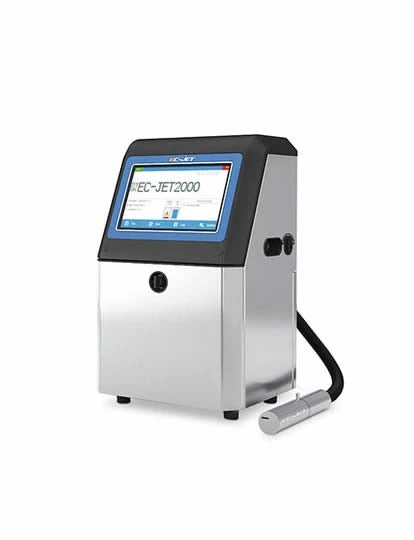

EC-JET Inkjet printer continuous Printing

Specification

Print speed	Up to 380 meters/min
Character	90°、180°、270°revolve available
Message capacity	Maximum 4GB
Message height	34 dots (Max)
Print line	1-4 lines
Graphic format	BMP/PNG/JPG
Text type	Fixed text, serial number, date, time, counter, shift code, database, random code, 1D bar code, 2D bar code
Max Message length	2048 characters (7X5 dots)
High precision screen	10.1" true color touch screen
Operation system	EC-JET self-developed “SEQ” operation system

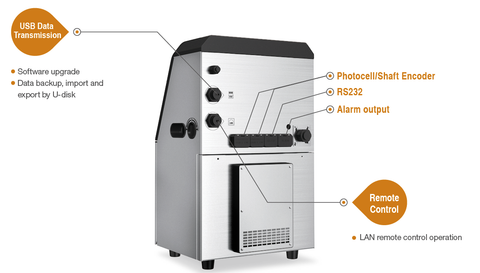

Interface	Photocell, Shaft Encoder, External Alarm, USB, Ethernet, RS-232 communication
Appearance	Industrial-grade stainless steel cabinet
Controller installation	desktop
Operating temperature	5-45℃
Relative humidity（no condensation）	10-90%
Protection Grade	IP55

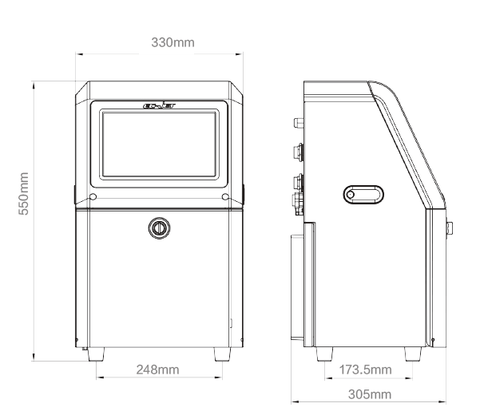

Work Dimension:330mm(L) X 305mm(W) X 550mm(H)
Shipping Dimension:470mm(L) X 460mm(W) X 700mm(H), 400mm(L) X 120mm(W) X 85mm(H) for Kits(Sensor and Bracket)
Gross Weight （Kg）:25 Kg, 1.74Kg for kits of sensor&bracket
Rated Watt:N/A
Rated Voltage:100-240V AC50/60HZ
Rated Amperage:N/A
Pressed Air/Vacuum:N/A
Control System:EC-JET self-developed “SEQ”operation system

Software Revision
Print speed:Up to 380 meters/min
Character:90°、180°、270°revolve available
Message capacity:Maximum 4GB
Message height:34 dots (Max)
Print line:1-4 lines
Graphic format:BMP/PNG/JPG

Text type:Fixed text, serial number, date, time, counter, shift code, database, random code, 1D bar code, 2D bar code
Max Message length:2048 characters (7X5 dots)
High precision screen:10.1" true color touch screen
Operation system:EC-JET self-developed “SEQ”operation system
Interface:Photocell,Shaft Encoder, External Alarm, USB, Ethernet RS-232 communication
Appearance:Industrial-grade stainless steel cabinet
Controller installation :desktop
Operating temperature:5-45℃
Relative humidity（no condensation）:10-90%
Protection Grade:IP55

Case Pictures

EC-JET2000 Inkjet Printer Continuous for Commercial and Industrial Printing OEM Sale
