Widely used in: furniture appliances maintenance; Clock maintenance; Printer and other office equipment maintenance; Mobile phone and other electronic equipment maintenance, etc.

CS01 Series:

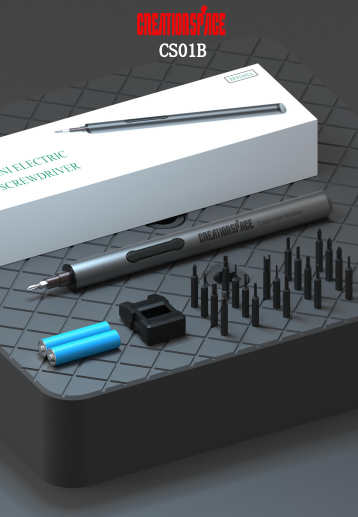

CS01B

Input voltage: DC 3V; Torque adjustment: N; Max Torque : 0.3/2 N.m; Chuck size: 4mm; Rotation mode: CW&CCW; No-load speed: 250r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button mode: Seesaw button; Battery Type: AAA Battery; Bits Size: H4*28mm; Bits Material: S2; Product size: 15.8*182mm;

Packing size: 25.5*7.5*5.5cm; Carton Size: 50 sets/carton, 45.5*26*43.2cm

Accessories: Electric Screwdriver*1,AAA Battery*2, Bits*20 pc, Magnetization*1, User Manual*1, Color Box*1

CS02 SERIES:

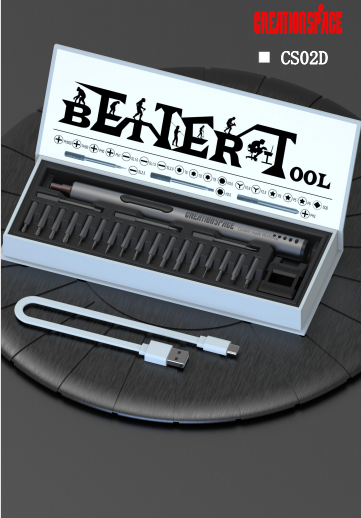

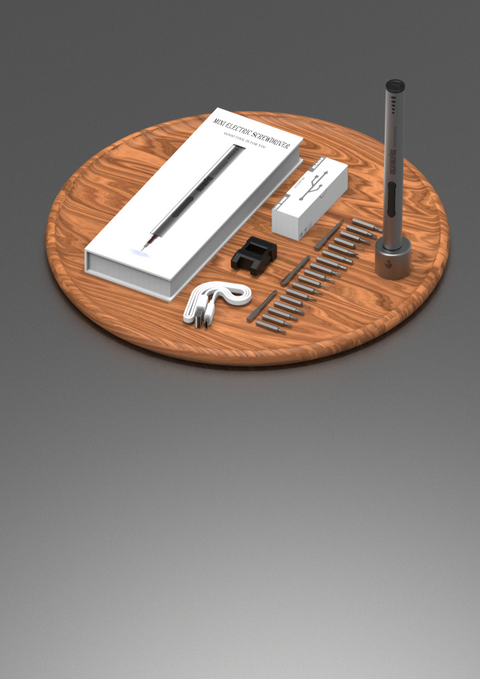

CS02D(Frosted Surface)/ CS02F(Scale Surface):

Input voltage: DC 3.7V; Torque adjustment: N; Max Torque : 0.35/2 N.m; Chuck size: 4mm; Rotation mode: CW&CCW; No-load speed: 280r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button mode: Seesaw button; Battery Type: Lithium Battery; Charging voltage: 5V/1A; Battery Capability:260 m Ah; Charging Period: 40 min; Bits Size: H4*28mm; Bits Material: S2; Product size: 15.8*182mm

Packing size: 272*90*36mm; Carton Size:50sets/carton, 470*288*355mm

Accessories: Electric Screwdriver*1,USB Cable*1, Bits*20 pc, Magnetization*1,User Manual*1

CS03 SERIES:

CS03B(Frosted surface) / CS03C (Scale surface):
Input voltage: DC 3.7V; Torque adjustment: N; Max Torque : 0.35/2 N.m; Chuck size: 4mm; Rotation mode: CW&CCW; No-load speed: 280r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button mode: Seesaw button; Battery Type: Lithium Battery; Charging voltage: 5V/1A; Battery Capability:260 m Ah; Charging Period: 40 min; Bits Size: H4*28mm,H4*45mm; Bits Material: S2; Product size: 15.8*182mm

Packing size: 255*119*41mm; Carton Size:20sets/carton, 525*240*230mm

Accessories: Electric Screwdriver*1,USB Cable*1, Bits(H4*28)* 50 pc, Bits(H4*45)*5 pc, Extension rod*1, Magnetization*1,Tool box*1,User Manual*1

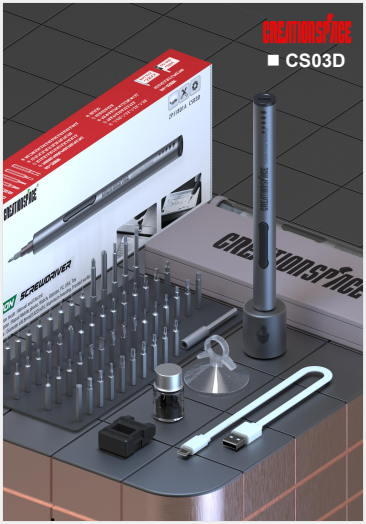

CS03D(Frosted surface) / CS03E (Scale surface):

Input voltage: DC 3.7V; Torque adjustment: N; Max Torque : 0.35/2 N.m; Chuck size: 4mm; Rotation mode: CW&CCW; No-load speed: 280r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button Pattern: Seesaw; Battery Type: Lithium Battery; Charging voltage: 5V/1A; Battery Capability:260 m Ah; Charging Period: 40 min; Bits Size: H4*28mm,H4*45mm; Bits Material: S2; Product size: 15.8*182mm

Packing size: 266*109*41mm; Carton Size:15sets/carton, 433*300*266mm

Accessories: Electric Screwdriver*1, USB Cable*1, Bits(H4*28)*50 pc, Bits(H4*45)*5pc, Extension rod*1, Magnetization*1, Triangle Pry Piece*1, Screw bottle*1, Base*1, Tool box*1, User Manual*1

CS06A SERIES:

Input voltage: DC 3.7V; Torque adjustment: 3rd Gear; Torque : 0.15,0.25,0.35/2 N.m; Chuck size: 4mm; Rotation mode: CW&CCW; No-load speed: 200r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button Pattern: Jog; Battery Type: Lithium Battery; Charging voltage: 5V/1A,2A; Battery Capability:300 m Ah; Charging Period: 40 min; Bits Size: H4*28mm; Bits Material: S2; Product size: 20*127mm

Packing size: 214*816*42mm; Carton Size:40sets/carton, 442*417*182mm

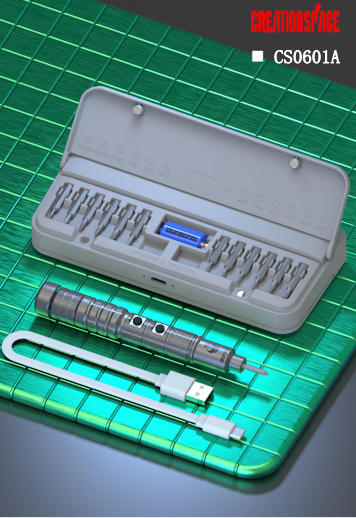

Accessories: CS0601A: Electric Screwdriver*1, Type-C USB Cable*1, Bits*28 pc, Lithium battery*1, Tool box*1, Bag*1, User Manual*1

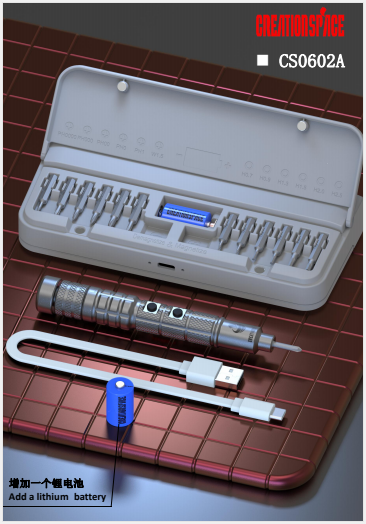

CS0602A:Electric Screwdriver*1, Type-C USB Cable*1, Bits*28 pc, Lithium battery*2,Tool box*1, Bag*1, User Manual*1

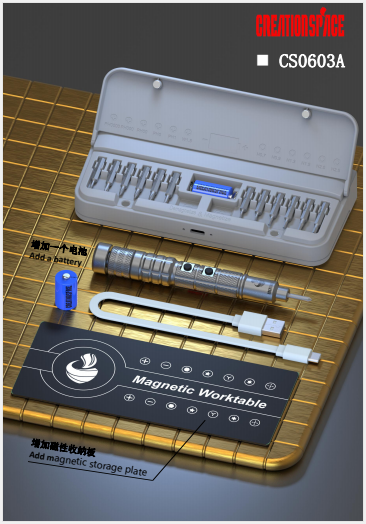

CS0603A:Electric Screwdriver*1, Type-C USB Cable*1, Bits*28 pc, Lithium battery*2,Magnetic storage plate*1, Tool box*1, Bag*1, User Manual*1

CS19A SERIES:

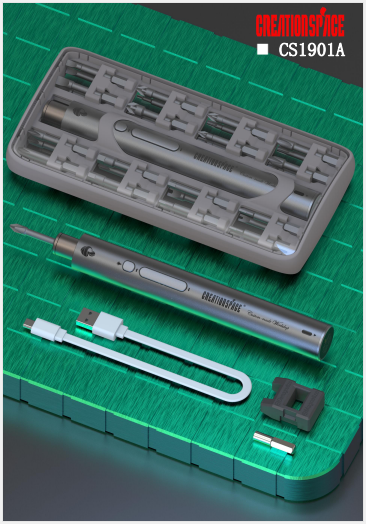

CS1901A:

Input voltage: DC 3.7V; Torque adjustment: 5rd Gear; Torque : 0.5-1.5/5 N.m; Chuck size: 6.35/(1/4")mm; Rotation mode: CW&CCW; No-load speed: 230r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button Pattern: Jog; Battery Type: 18650 Lithium Battery; Charging voltage: 5V/1A,2A; Battery Capability:2000 m Ah; Charging Period: 190 min; Bits Size: H6.35*45mm; Bits Material: CRV; Product size: 24*190mm

Packing size: 255*118*40mm; Carton Size:20sets/carton, 538*255*240mm

Accessories: Electric Screwdriver*1, USB Cable*1, Bits*32 pc, Tool box*1, 6.35-4mm Connector*1, User Manual*1

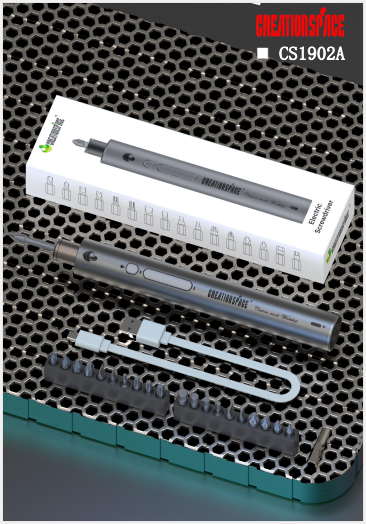

CS1902A:

Input voltage: DC 3.7V; Torque adjustment: 5rd Gear; Torque : 0.5-1.5/5 N.m; Chuck size: 6.35/(1/4")mm; Rotation mode: CW&CCW; No-load speed: 230r/min; Working mode: manual & automatic; Lighting mode: LED Light; Button Pattern: Jog; Battery Type: 18650 Lithium Battery; Charging voltage: 5V/1A,2A; Battery Capability:2000 m Ah; Charging Period: 190 min; Bits Size: H6.35*25mm; Bits Material: CRV; Product size: 24*190mm

Packing size: 223*65*39mm; Carton Size: 39sets/carton, 410*235*219mm

Accessories: Electric Screwdriver*1, USB Cable*1, Bits*32 pc, Tool box*1, 6.35-4mm Connector*1, User Manual*1

Case Pictures

Smart E Screwdriver Rechargeable FineWork CS01/02/06/19 Series Lot Sale
