MD6600 Handheld Image Scanner use of a new generation of decoding technology to scan the bar code, two-dimensional code reading, and can cope with the daily encounter of defaced bar code, engraving code and other bar code reading.

A standard packing includes a scanner, a USB cable and a quick guide.

Accessories include a RS232 cable, a 5V adaptor.

Use a piece of dry and soft cloth when cleaning the scanner is in need.

Product Features:

-High performance in decoding barcode.

-Stylish and ergonomic design.

-Plug-and-play interfaces enable the scanner to be used with different host devices.

-Image auto-induction technology supports free switch between handheld and auto-detection modes.

-Soft white auxiliary lighting and green aimer deliver comfortable and convenient scanning experience.

Specification

Rated Amperage: Standby: 160 mA , Scanning: 300 mA (Max:480 mA)

Connector Type: RJ-45 phone jack connector

Indicator: Beeper, LED

Interface Supported: RS-232, USB Keyboard, USB virtual COM

Programming Method: Manual (reading special barcode)

Image Size: 1280 × 800 pixels

Light Source: Illumination : 5000 K , white LED

Aiming: 525 nm peak wavelength, green LED

Scanning Angle: ±70°, ±75°, 360° (skew, pitch, roll)

Print Contrast: 20% minimum reflective difference

Decoding Capability: 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, GS1 DataBar (formerly RSS) variants

Minimum Resolution HD:1D（Code 39): 3mil

SR：1D（Code 128）：4mil

Temperature:-10° to 50°C (14° to 122°F), operating; -20° to 70°C (-4° to 158°F), storage

Accessories: 1*scanner,1*USB cable,1*RS232 cable, 1*5V adaptor,1*quick guide

Product Size:90mm(L) X 62.8mm(W) X 153mm(H)

Carton Size: 50set/carton, 620(L) X 460mm(W) X460 mm(H);27kg

Safety Specification

EMC: EN55032, EN55035

Electrical Safety: EN62368-1

Photobiological Safety: EN62471:2008

Light Levels: 0 to 100,000 Lux

Sealing: IP52

Drop Resistance: Withstands multiple 2.0 m drops to concrete

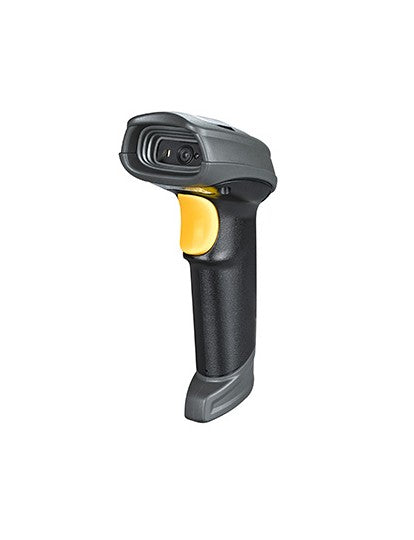

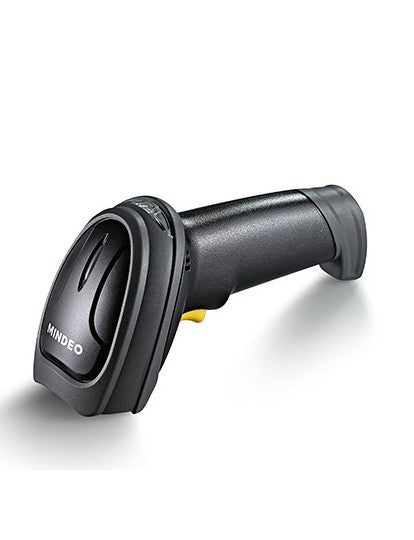

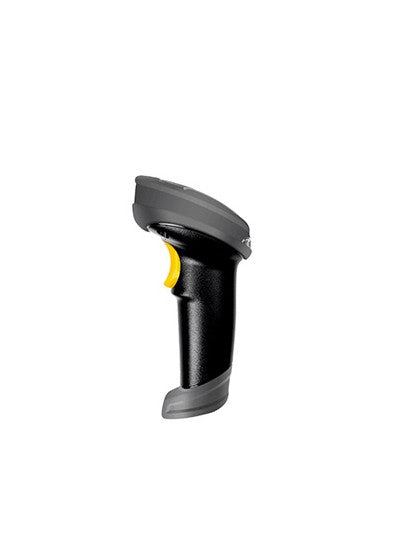

Case Pictures

Handheld Image 1D and 2D Barcode Scanner 6600 MD for Inventory Control OEM Promotion Lot Sale
