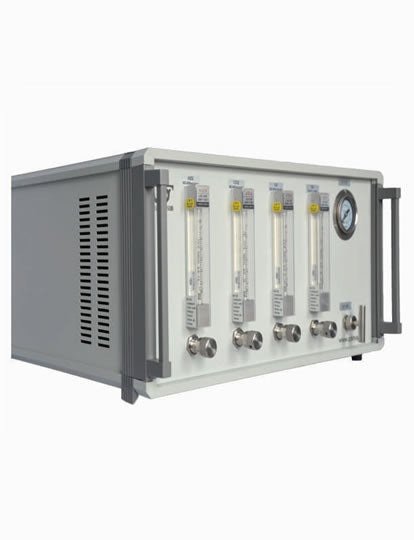

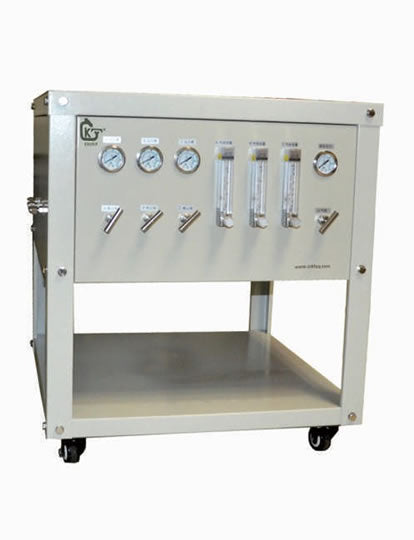

Float Flowmeter Gas Proportioner KT-S3F for Test and Measurement OEM Sale
For manual economical gas proportioner system, the flowmeter is controlled by high-precision needle valve, and the application accuracy is not high, such as gas flow control during atmosphere protection of tubular furnace, atmospheric environment detection and analysis equipment, chemical industry, petrochemical, metallurgy, optical fiber smelting, metal welding, inert gas proportioning and mixing, CVD PECVD system, high-temperature heating inert gas flow control, etc
|
Model |
KT-S3F |
|
Flowmeter |
Float flowmeter |
|
Flowmeter core |
quartz glass |
|
Measure Range |
6-60ml, 10-100ml, 16-160ml, 30-300ml, 60-600ml, 0.1-1L, 0.16-1.6L, 0.3-3L |
|
Channel Pipe Material |
SUS 316 |
|
Flowmeter Enclosure |
Organic Glass |
|
Gas Type |
Options selectable(corrosion and hazardous gas excluded) |
|
air inlet and outlet joint form |
3mm,6mm,1/8,1/4 Ferrule interface |
|
Valve Type |
High precision needle valve |
|
Pressure Range |
≤0.3MPa |
|
Temp Range |
≤120℃ |
|
Accuracy Level |
4(4% of Reading) |
|
Gas Mixing Pipe |
50ML |
|
Dimension |
170x400x380 or 600x600x650 |
|
Weight |
12Kg-36Kg |
