Connected with your PDA, smart phone, tablet computer by Bluetooth,convenient and save your cost

Reading/Writing under protocols of ISO-18000-6B、ISO-18000-6C（EPC G2）

View and comfirm on PDA display easily when reading or writing

Costs less,more economic than readers with PDA

Reliable designation of industrial structure, applicable for tough working environments

Provides demo software and SDK based on Android.

Specification

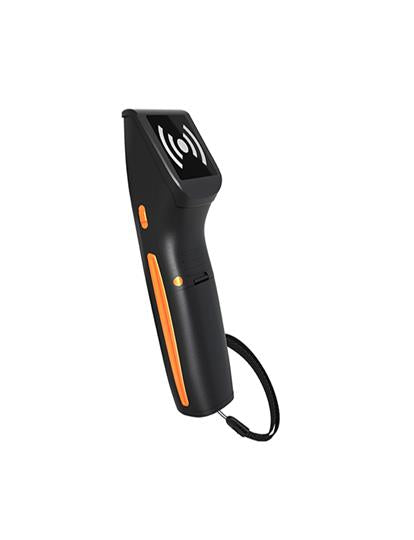

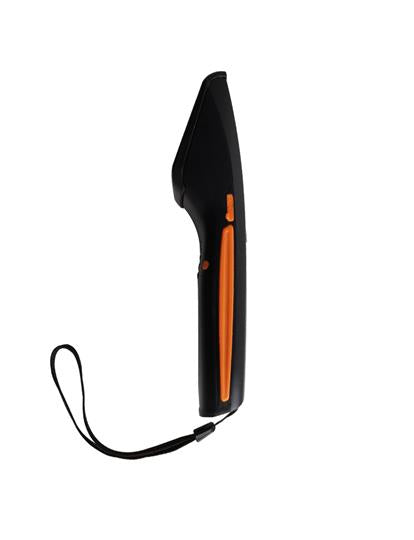

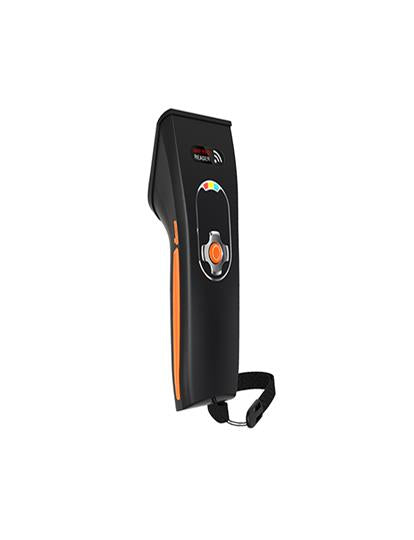

VH-75

Specifications
Model(Order code)	VH-75
Performance Indicators
Frequency range	865-868MHZ，902-928MHZ(Adjustable)
RF mode	FHSS or FF(Could be set by software)
RF output	18~26 dBm(adjustable)
Communication Interface	USB2.0, Bluetooth 4.0
Performance of tag operation
Reading distance	Read>200cm，Write>20cm
Air-interface protocol	ISO-18000-6B、ISO-18000-6C（EPC G2）
Mechanical and electrical properties
Dimension	180(Length)65 (Width)65(Height)mm
Power	Rechargeable lithium battery（3.7V,3200mAH）
Reading Indication	Buzzer, vibration,LED
Storage space	1Gb(NandFlash)
Standby time	150 hours
Weight	250g
Humidity	5% to 95%,Non-condensing
Ingress Protection	IEC IP56
Working Temperature	-20oC to +50oC
Storage Temperature	-25°C to70°C

Specifications

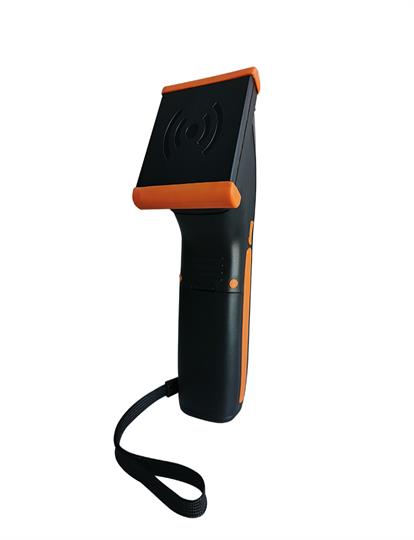

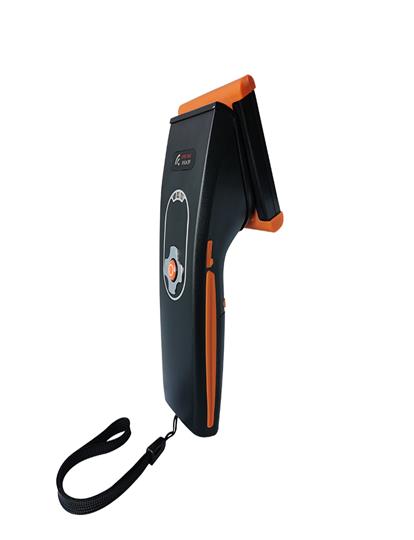

Model(Order code)	VH-75T
Specifications
Frequency range	865-868MHZ，902-928MHZ(Adjustable)
RF mode	FHSS or FF(Could be set by software)
RF output	18~26 dBm(adjustable)
Communication Interface	USB2.0, Bluetooth 4.0
Performance of tag operation
Reading distance	Read>500cm，Write>20cm
Air-interface protocol	ISO-18000-6B、ISO-18000-6C（EPC G2）
Mechanical and electrical properties
Dimension	180(Length)80 (Width)65(Height)mm
Power	Rechargeable lithium battery（3.7V,3200mAH）
Reading Indication	Buzzer, vibration,LED
Storage Space	1Gb(NandFlash)
Standby time	150 Hours
Weight	300g
Humidity	5% to 95%, Non-condensing
Ingress Protection	IEC IP56
Working Temperature	-20°C to +50°C
Storage Temperature	-25°C to70°C

UHF RFID Handheld Reader VH-75 Series for Commercial Retail and Inventory Control Lot Sale
