VANCH
Bluetooth UHF RFID Wristband Reader VH-B73 for Inventory Control Lot Sale
Bluetooth UHF RFID Wristband Reader VH-B73 for Inventory Control Lot Sale
Couldn't load pickup availability

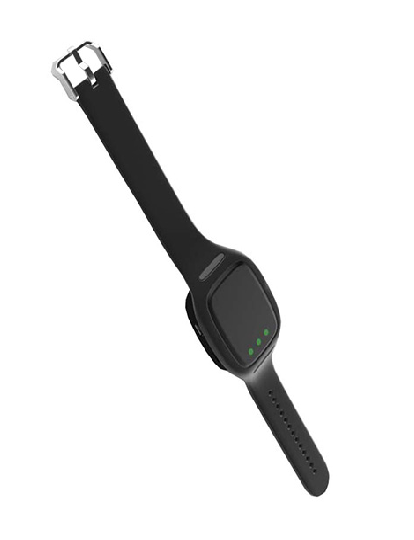

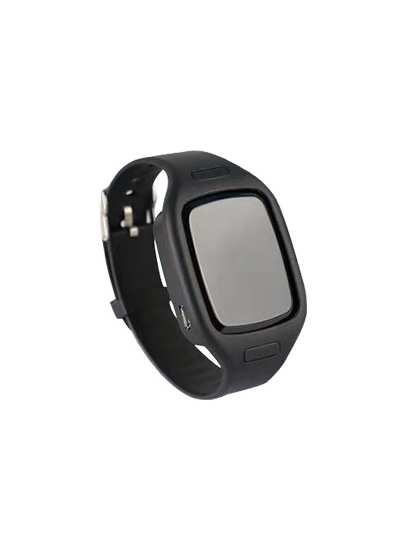

1.Adopt a portable wristband design, small card reader, watch size, fashion match;
2. Support system：Windows、IOS、Android、Mini Program;

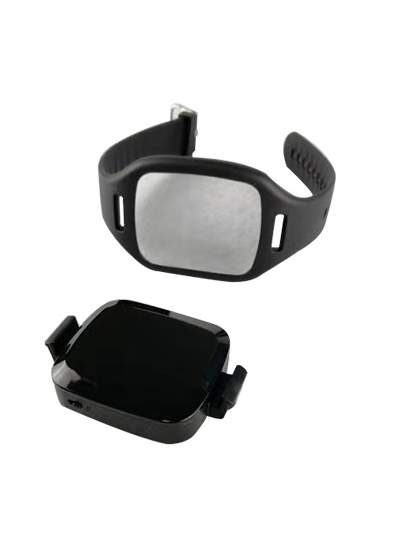

3. Can be flexibly transformed into a wristband watch, telescopic rod reader, chest-mounted reader, desktop reader;
4. Using ABS+PC engineering plastic, stylish and durable.
Specification
|
Performance Parameter |
|
|
Model# |
VH-B73 |
|
Packing Size |
122*105*46mm |
|
Protocol |
ISO18000-6C |
|
Support system |
Windows、IOS、Android、Mini Program |
|
Communication interface |
BLE4.0、USB |
|
Read distance |
50cm（related to tag） |
|
Electric Parameter |
|
|
Battery capacity |
500mA |
|
Charging method |
USB 5V/0.5A，charge for 2 hours |
|
Work time |
Work continuously for 3 hours, can inquire 30,000 times |
|
Material |
ABS+PC engineering plastic |
|
Operating temperature |
-20℃~60℃ |
|
Working Status Indicator |
|
|
Switch |
Toggle switch |
|
Middle light |
① Normal work: green light is on ②The device is abnormal: the light is off ③ Low power: the green light keeps flashing slowly (low power alarm, please charge as soon as possible) ④The battery power is extremely low: the green light keeps flashing fast (Stop using at low power, unable to read tag) ⑤ Charging: red light is on ⑥ Charging completed: the red light goes out |
|
Left light |
① Bluetooth connection is successful: the green light is on ②Bluetooth data transmission: green light flashes quickly |
|
Right light |
Operation tag success: green light flashes |
