Specifications

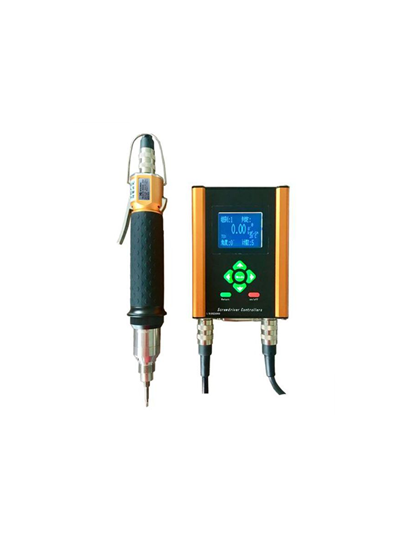

Electric Torque Screwdriver, ESD and Torque Control, with a Full Auto Shut-Off clutch and a powerful brushless motor. Common usages are assembly applications that require exact repeatable torque control, Screw Count and Production Data Logging.
Key Features:
- Data storage and output
- Compact & Portable
- Tightening status display & process monitoring
- Tightening torque & speed real-time display

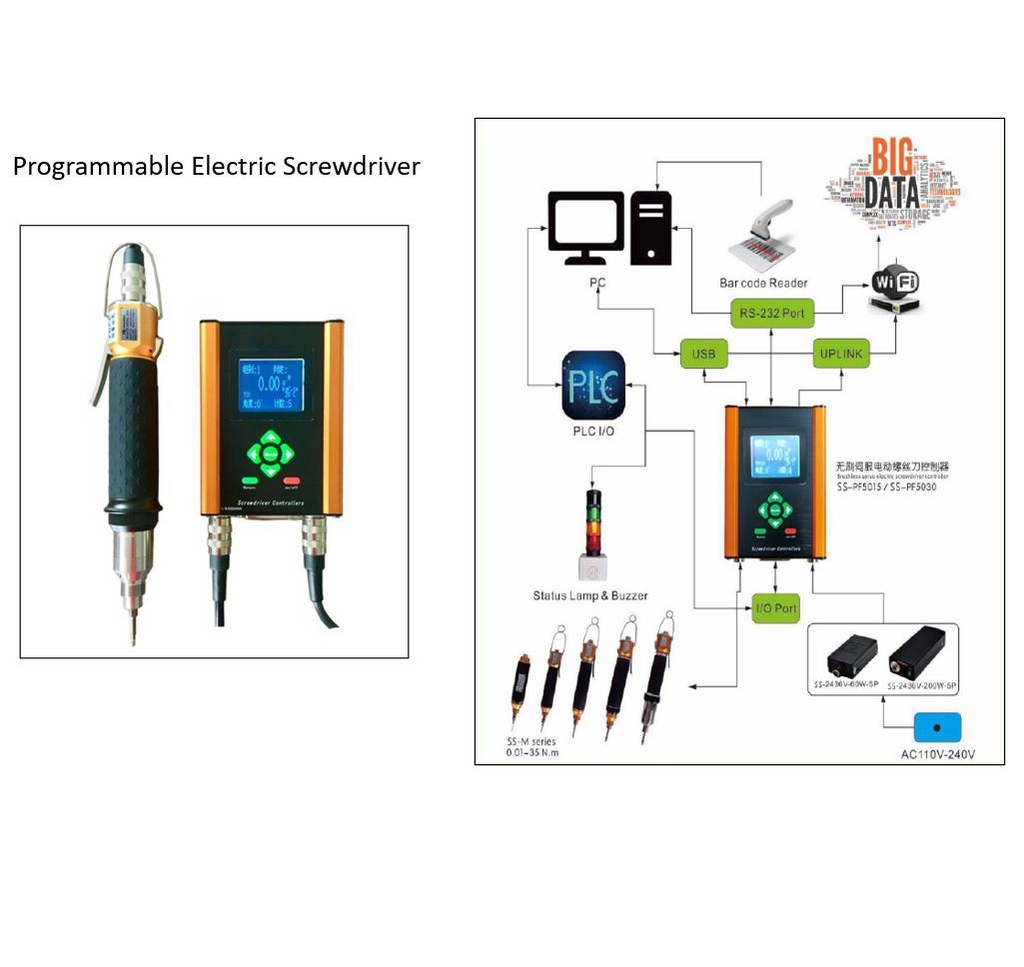

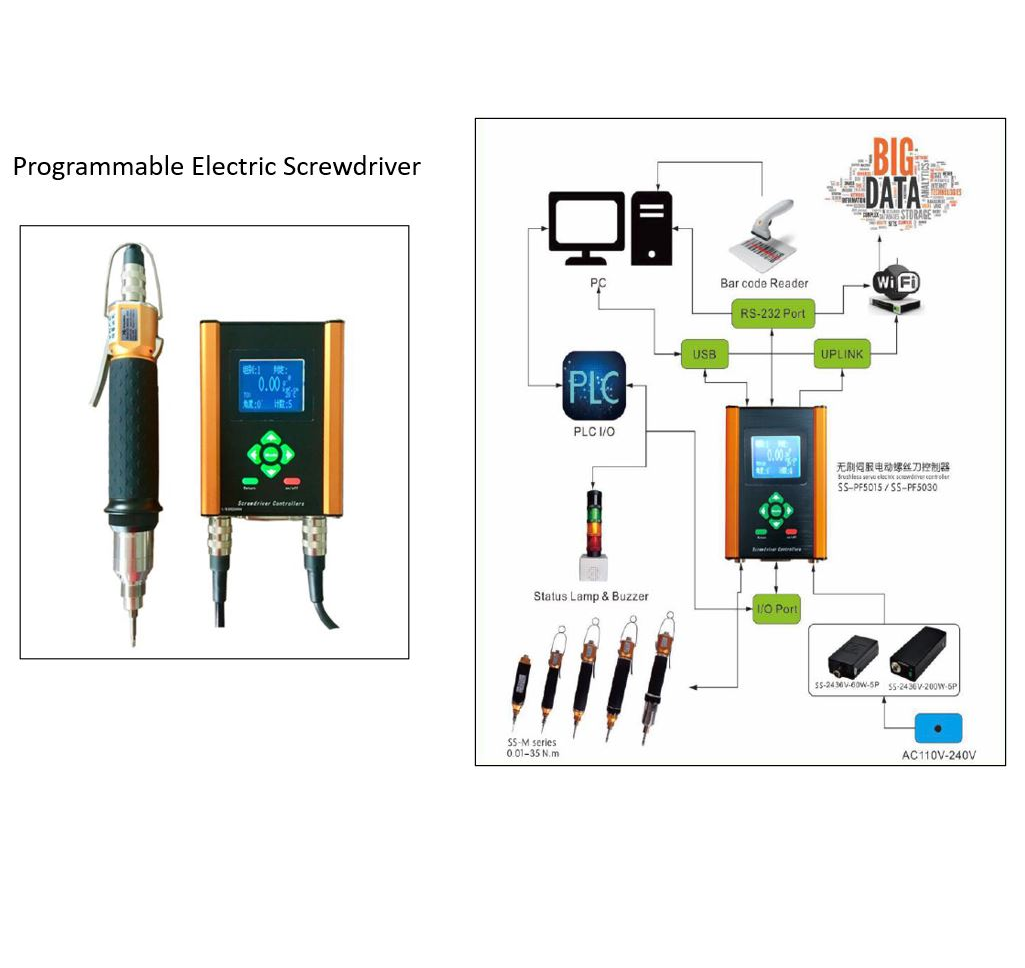

- Communication with PC or other devices
- Only suitable for industrial application
- Screw count: 1 ~ 99
- Range of locking angle: 1 ~ 36000 degrees
- Preparatory angle: 0.0 ~ 99.9 turns
- Single-job time: 0.1 ~ 9.9 seconds
- Standby time: 0 ~ 99 seconds
- Fixture action delay time: 0.1 ~ 9.9 seconds
- Range of tightening torque: 0.001 ~ 99.999 Nm
- Data storage and output
- Maximal 20 groups of different parameters for cycling use.
- Up to 24 parameters to set for single set of data.
- Input Voltage: DC 24V-48V
- Range of operating temperature: 5 ~ 50 C (41 ~ 122 F)
Specification

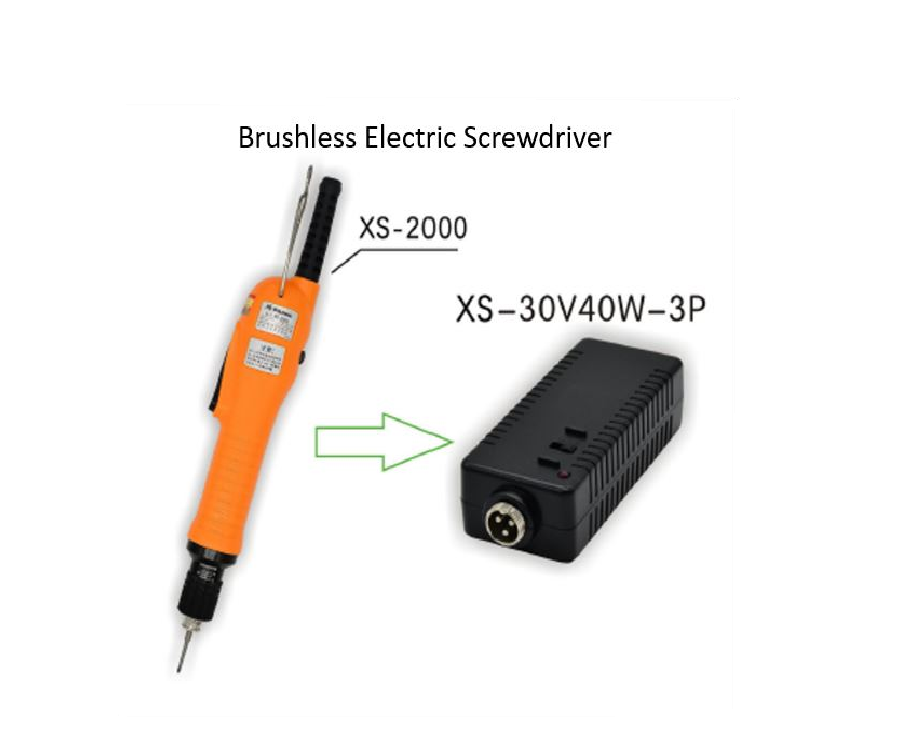

XS-2000:
Torque Range: 0.2-3.5 kgf.cm, 0.02-0.34 N.m
No Load Speed(r.p.m):HI:1000; LO:800
Input Voltage: 30V
Weight:330g
Diameter of Screw: M1.2-M2.5
Screw Bit: Ø4mm
Accessories: Power Adapter (XS-30V40W3P),Fixed Type Cable, National Plum Blossom Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø4*40*Ø2.5*20*1#; Ø4*40*Ø2.5*20*0#)
Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)

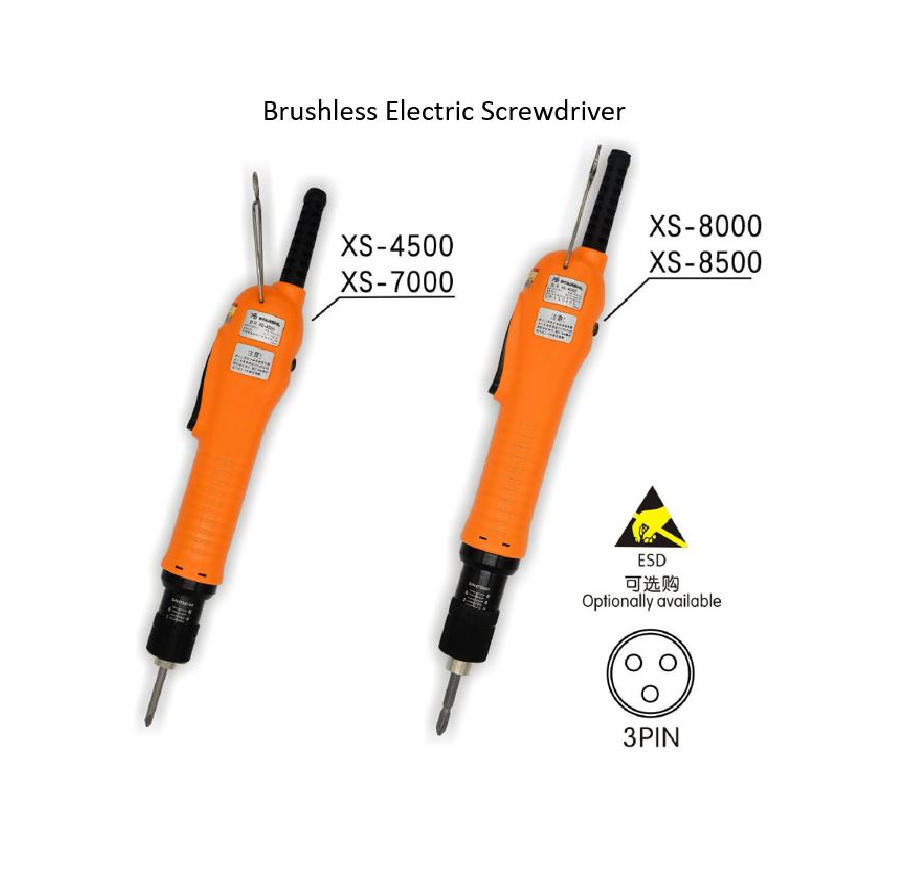

XS-4500:
Torque Range: 1-10 kgf.cm, 0.1-1 N.m
No Load Speed(r.p.m):HI:1000; LO:800
Input Voltage: 30V
Weight:430g
Diameter of Screw: M1.4-M3.0
Screw Bit: Ø5mm

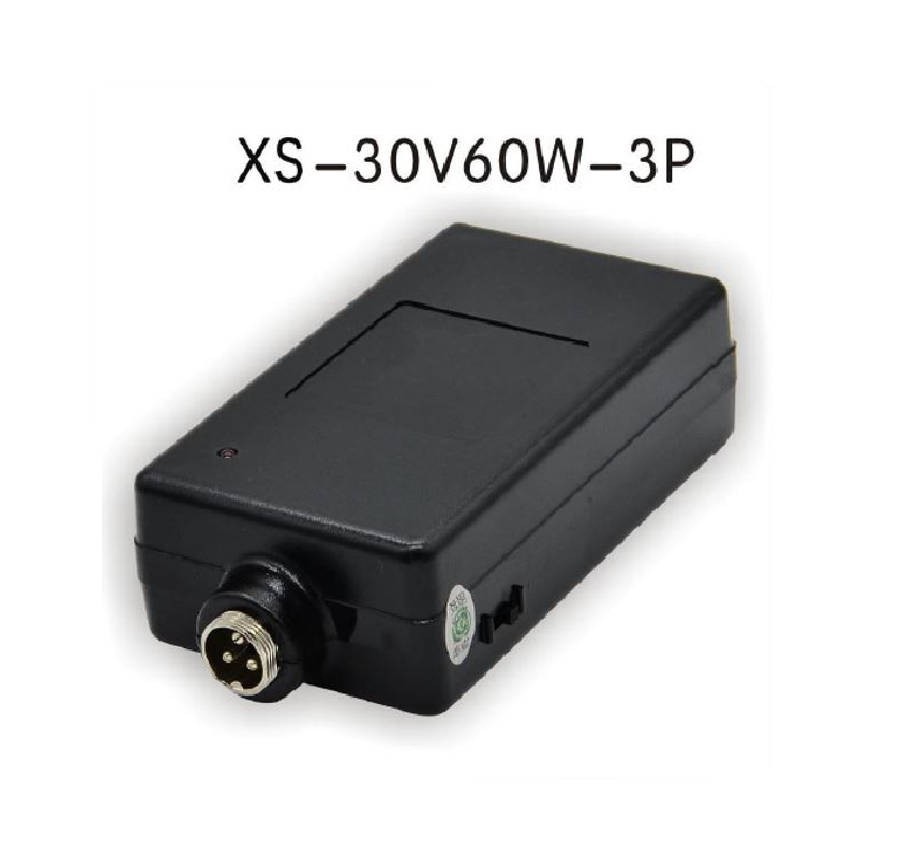

Accessories: Power Adapter (XS-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø5*60*1#; Ø5*60*2#)
Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)
XS-7000:
Torque Range: 3-20 kgf.cm, 0.29-1.96 N.m
No Load Speed(r.p.m):HI:1000; LO:800
Input Voltage: 30V
Weight:430g
Diameter of Screw: M2.3-M3.5
Screw Bit: Ø5mm
Accessories: Power Adapter (XS-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø5*60*1#; Ø5*60*2#)
Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)
XS-8000:
Torque Range: 10-35 kgf.cm, 0.98-3.43 N.m
No Load Speed(r.p.m):HI:650; LO:450
Input Voltage: 30V
Weight:740g
Diameter of Screw: M2.3-M3.5
Screw Bit: 1/4hex
Accessories: Power Adapter (SD-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(SSH1/4*65*1#;SSH1/4*65*2#)
Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)
XS-8500:
Torque Range: 15-45 kgf.cm, 1.47-4.41 N.m
No Load Speed(r.p.m):HI:650; LO:450
Input Voltage: 30V
Weight:740g
Diameter of Screw: M3.5-M5.5
Screw Bit: 1/4hex
Accessories: Power Adapter (SD-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(SSH1/4*65*1#;SSH1/4*65*2#)
Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)
