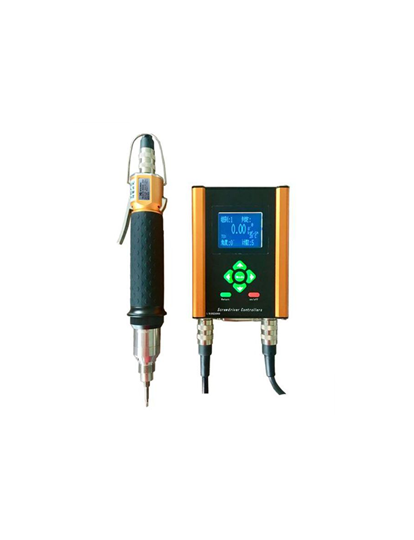

Smart Screw Driver Brushless Electric with ESD Torque Control & Data Tracking for Manufacturing Tool Kit OEM Sale

Electric Torque Screwdriver, ESD and Torque Control, with a Full Auto Shut-Off clutch and a powerful brushless motor.  Common usages are assembly applications that require exact repeatable torque control, Screw Count and Production Data Logging.

Key Features:

• Data storage and output
• Compact & Portable
• Tightening status display & process monitoring
• Tightening torque & speed real-time display

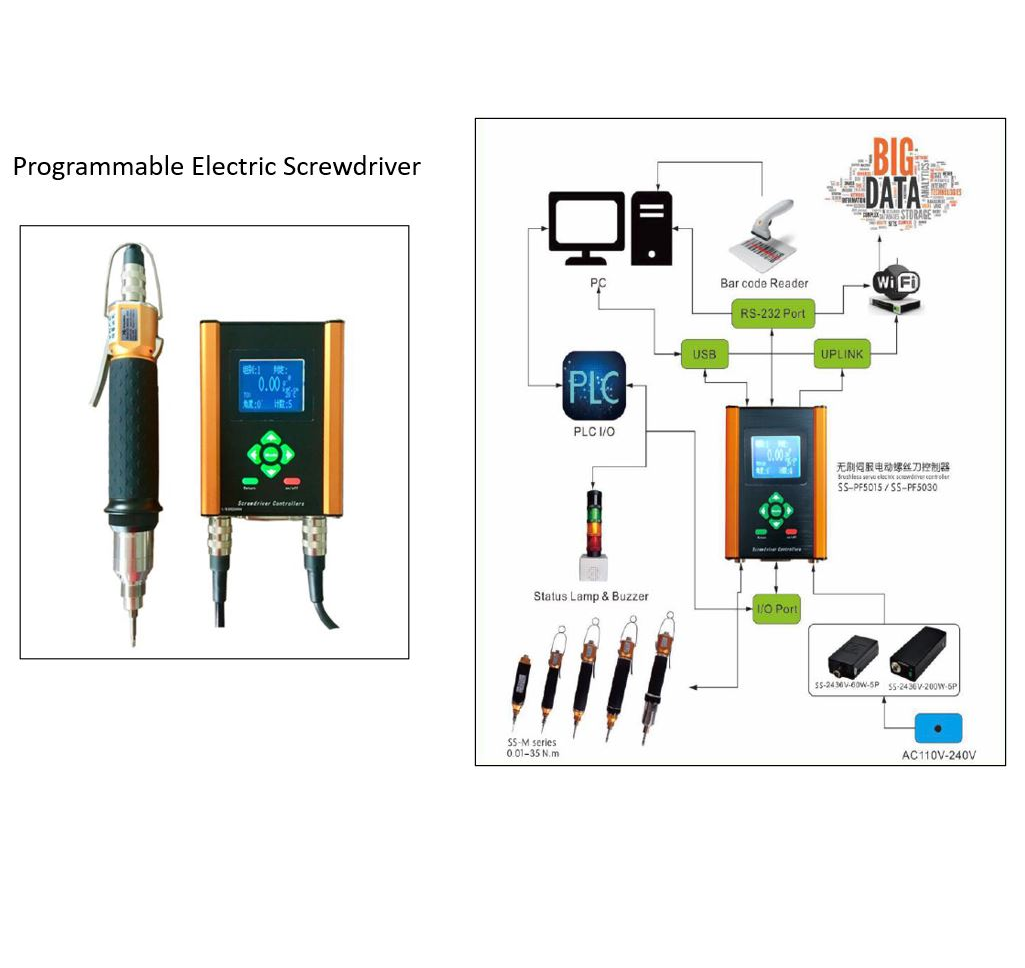

• Communication with PC or other devices
• Only suitable for industrial application
• Screw count: 1 ~ 99
• Range of locking angle: 1 ~ 36000 degrees
• Preparatory angle: 0.0 ~ 99.9 turns
• Single-job time: 0.1 ~ 9.9 seconds
• Standby time: 0 ~ 99 seconds
• Fixture action delay time: 0.1 ~ 9.9 seconds
• Range of tightening torque: 0.001 ~ 99.999 Nm
• Data storage and output
• Maximal 20 groups of different parameters for cycling use.
• Up to 24 parameters to set for single set of data.
• Input Voltage: DC 24V-48V
• Range of operating temperature: 5 ~ 50 C (41 ~ 122 F)

Specification

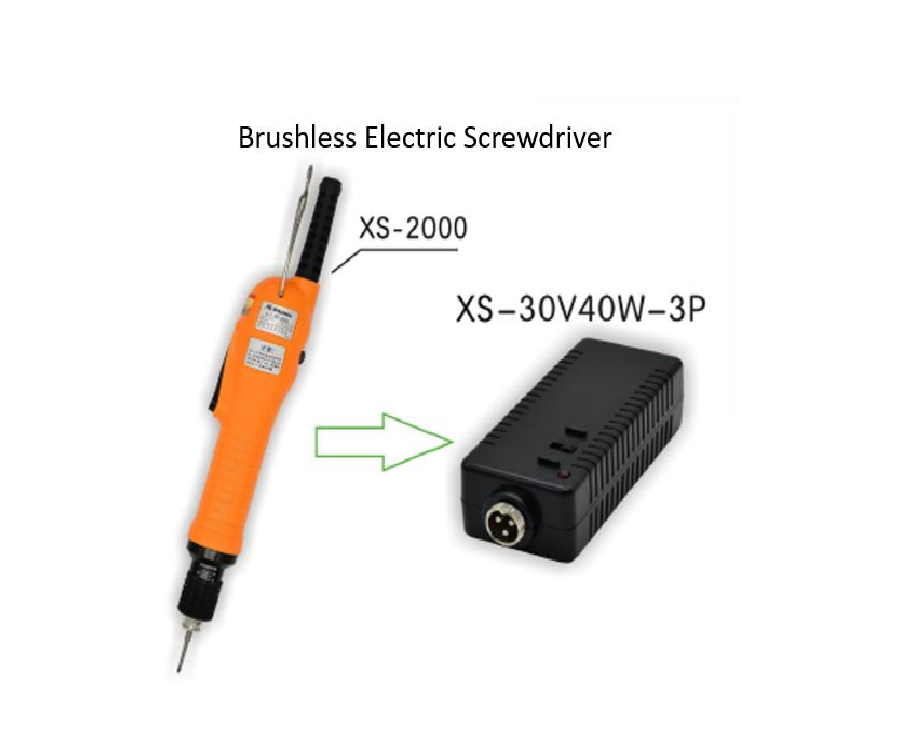

XS-2000:

Torque Range: 0.2-3.5 kgf.cm, 0.02-0.34 N.m

No Load Speed(r.p.m):HI:1000; LO:800

Input Voltage: 30V

Weight:330g

Diameter of Screw: M1.2-M2.5

Screw Bit: Ø4mm

Accessories: Power Adapter (XS-30V40W3P),Fixed Type Cable, National Plum Blossom Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø4*40*Ø2.5*20*1#; Ø4*40*Ø2.5*20*0#)

Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)

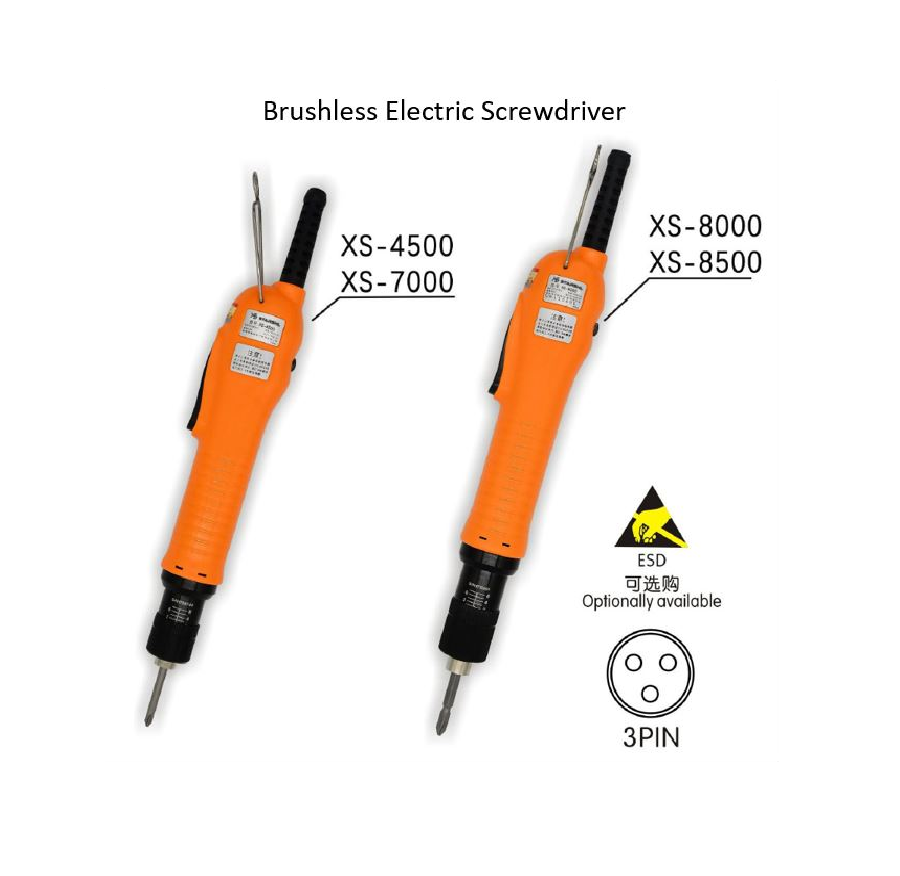

 XS-4500:

Torque Range: 1-10 kgf.cm, 0.1-1 N.m

No Load Speed(r.p.m):HI:1000; LO:800

Input Voltage: 30V

Weight:430g

Diameter of Screw: M1.4-M3.0

Screw Bit: Ø5mm

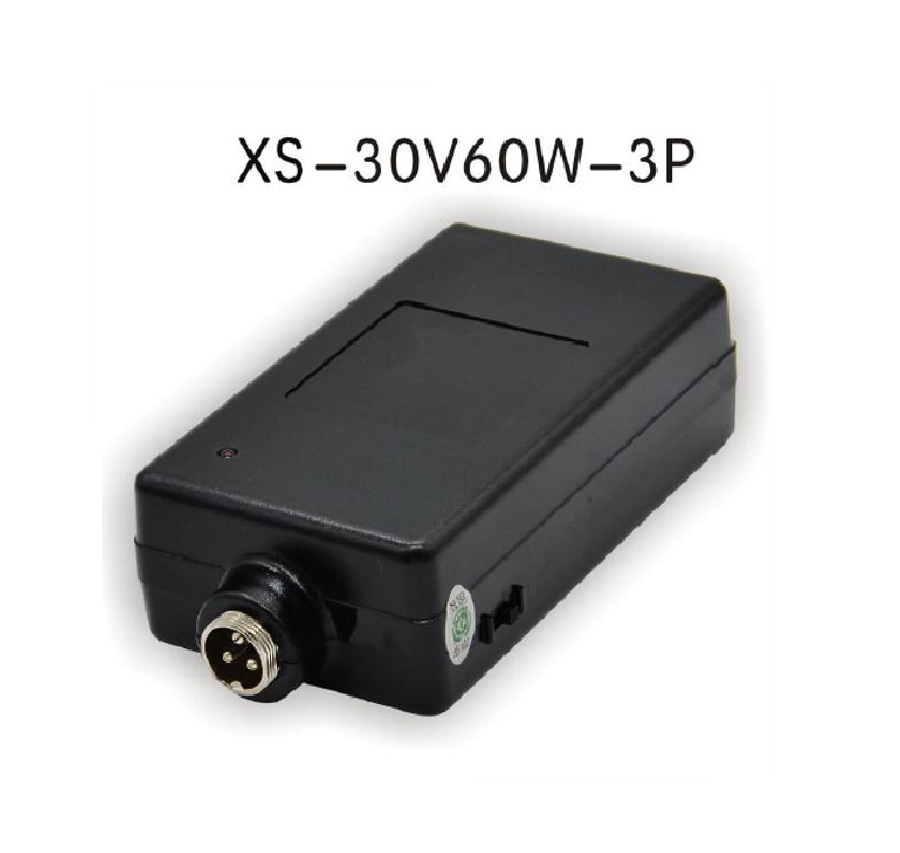

Accessories: Power Adapter (XS-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø5*60*1#; Ø5*60*2#)

Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)

XS-7000:

Torque Range: 3-20 kgf.cm, 0.29-1.96 N.m

No Load Speed(r.p.m):HI:1000; LO:800

Input Voltage: 30V

Weight:430g

Diameter of Screw: M2.3-M3.5

Screw Bit: Ø5mm

Accessories: Power Adapter (XS-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(Ø5*60*1#; Ø5*60*2#)

Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)

XS-8000:

Torque Range: 10-35 kgf.cm, 0.98-3.43 N.m

No Load Speed(r.p.m):HI:650; LO:450

Input Voltage: 30V

Weight:740g

Diameter of Screw: M2.3-M3.5

Screw Bit: 1/4hex

Accessories: Power Adapter (SD-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(SSH1/4*65*1#;SSH1/4*65*2#)

Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)

XS-8500:

Torque Range: 15-45 kgf.cm, 1.47-4.41 N.m

No Load Speed(r.p.m):HI:650; LO:450

Input Voltage: 30V

Weight:740g

Diameter of Screw: M3.5-M5.5

Screw Bit: 1/4hex

Accessories: Power Adapter (SD-30V60W3P), Fixed Type Cable,National Standard Three Square Pins Tail Power Cord, Suspension Spring, Screwdriver Bits(SSH1/4*65*1#;SSH1/4*65*2#)

Product Dimension: 150mm x 110mm x 50mm (5.91 x 4.33 x 1.97 inches)
