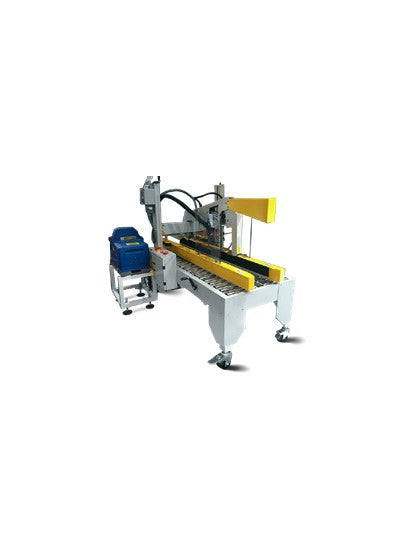

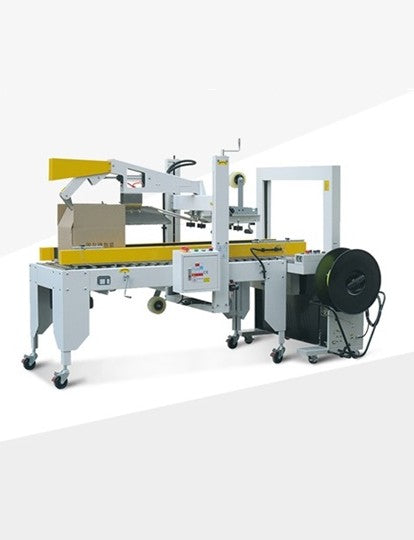

Carton Sealing and Strapping Machine GPP-50 Series for Facility Shipping and Packaging

Flaps Folding Carton Sealer & Strapping Machine GPP-50C:

GPP-50C is a kind of packaging machine that integrates automatic sealing and bundling, and can be used with automatic packaging line. It realize automatic folding cover, upper and lower sealing tape, multi-bundling. This machine works efficiently, and can meet the needs of new and old customers.

It is widely used in printing, painting, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics and other mass production industries.

Features:

• Sealing and bundling are carried out at the same time. It is not only fast, but also efficient and small.
• This machine adopts PLC automatic program control, which is easy to operate and has low failure rate.
• Using photoelectricity to detect the binding position of the carton, one to three automatic bundling processes can be realized
• All actions are done automatically, reaching unmanned packaging
• It can be used in stand-alone operation, and can also be used with automatic packaging line.

 Hot Melt Glue Flaps Folding Carton Sealer GPC-50H

Specification

GPP-50C:

Power:420W

Power Supply:380V-!50/60HZ,3Phase

Carton Size:L200~600×W150~500×H150~500mm

Air Consumption:50NL/min

Air Compressor:0.6Mpa

Adhesive Tape Width:48/60/75mm

Table Height:720-870mm

Machine Dimension:L2070×W920×H1520mm

Machine Weight:260kg



GPC-50H:

Conveyor Speed:18m/min

Power:400W

Power Supply:110/220V,50/60HZ,1Phase

Carton Size:L200~600×W150~500×H150~500mm

Air Consumption:50NL/min

Air Compressor:0.6Mpa

Adhesive Tape Width:48/60/75mm

Table Height:600-750mm

Machine Dimension:L1770×W850×H1520mm

Machine Weight:250kg
