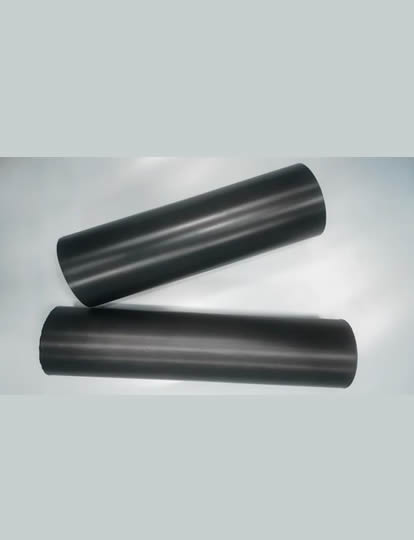

Conductive Tape

Conductive Tape ST-CTS01

Product Feature:

Single side acrylic adhesive conductive fabric tape has excellent adhesive force

By using mixed adhesive, excellent conductivity

By using mixed conductive liner, excellent conductivity vertically and horizontally.

Shielding electronic signal interference.

Easy to handle with excellent heat resistance and maintenance.



Product Laminating Structure

Black conductive liner

Copper foil

Conductive adhesive liner

Conductive fabric

Conductive adhesive

Release liner

Application

TV/Display/Computers

Conductive Tape BF-AMCT-0045B、BF-AMCT-0050B

Product Feature:

Excellent adhesive

Excellent Electro Conductivity

Excellent Light Shielding

Thin, excellent for applications on mobile phone.

Structure:

Black Conductive Fabric Layer

Electro Conductive Acrylic Adhesive Layer

PET Release Liner Layer



Typical Specification:

		BF-AMCT-0045B	BF-AMCT-0050B
Test Items	Test Method	Value	Value
Thickness(Excluding Release Liner	ASTM D3652	45±10%（μm）	50±10%（μm）
180°Peel Strength	ASTM D 3330	Min 700gf/25mm	Min 700gf/25mm
Surface Resistance	ASTM D-991(MIL DTL 83528)	Max.100mΩ	100mΩ
Vertical Resistance	ASTM D-257	Max.50mΩ	50mΩ
Adhesive		Conductive Acrylic Adhesive



1000mm*50m/Roll
