Torque Sensor Series High Accuracy for Engineering Research OEM Sale

The resistance strain sensor works on the principle that the resistance of the resistance strain gauge changes when it is deformed. It is mainly composed of elastic element, resistance strain gauge, measuring circuit and transmission cable.

Weighing Sensor Load Cell:

LSZ-A00:

• S-Type load cell
• Senior alloy steel
• Easy to install, stable & reliable

Multiple applications: pull and push, testing machine, batching scales, crane scales, special scales, etc.

Torque Sensor:

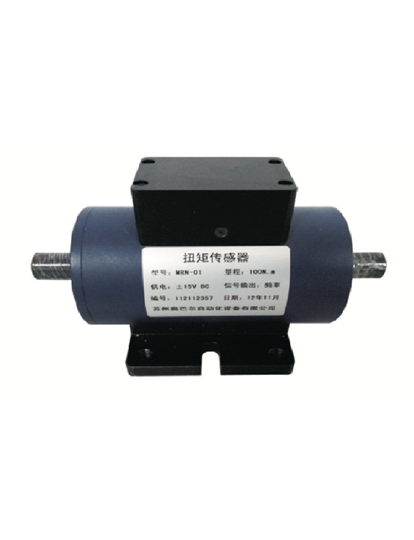

MRN-01:

• Digital output signal
• Can transmit static torque signal, dynamic torque signal, rotary torque signal
• Easy to install, stable,portable and reliable

Multiple applications: torque, speed and power measurement for motor, generator, fan, aircraft, mine, reducer, ship, diesel, etc.

Pressure Transducer:

OT-500 :

• Suitable for position detection of various types of equipment:Injection molding machine, die casting machine, rubber machine, EVA injection molding machine, etc.;
• Uninterrupted resolution;
• Cold resistance, high temperature resistance, anti-aging;
• Anti-static and radiation, high wear-resistant engineering slip ring and seal;
• Sensor travels from 5mm to 50mm.

Vortex flowmeter :

LUGB/E:

• Multiple caliber options;
• Suitable for multiple pipe types;
• Multiple application fields: Petroleum, chemical, metallurgy, thermal, textile, papermaking, etc. industries that need to measure and control saturated steam, superheated steam, compressed air and general air, liquids.

Specification

 Torque Sensor(MRN-01)

Capacities: 0 ~ ±5N·m, 0 ~ ±(10, 20, 50, 100, 200, 500)N·m, 0 ~ ±(1000, 2000, 5000, 10000, 20000)N·m

Accuracy(3 options): < ± 0.5% F·S, < ± 0.3% F·S, < ± 0.1% F·S

Repeatability: < ± 0.1% F·S

Safe Static Overload(3 options): 120%, 150%, 200%

Safe Temperature Range: -10°C ~ +50°C

Storage Temperature Range: -20°C ~ +70°C

Output Type: square wave frequency signal, could add module for current or voltage signal

Output Impedance(3 options): 350Ω ± 1Ω; 700Ω ± 3Ω; 1000Ω ± 5Ω

Output frequency: 5kHz ~ 15kHz

Rated Excitation: ±15V ±5%

Rated Torque: 10kHz ± 5kHz (observed value)
