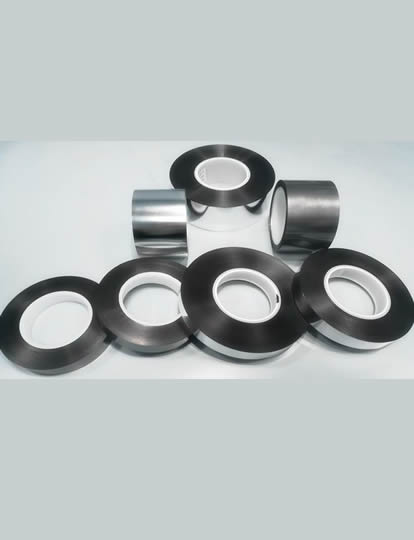

Conductive Tape
Product Feature: ST-IMS01/ ST-IMS02/ ST-IMS03/ ST-IMS04
Single side acrylic adhesive conductive tape has excellent adhesive force
Shielding electronic signal interference.
Easy to handle with excellent heat resistance and maintenance.
Product Feature: ST-IMS05/ ST-IMS07
Single side acrylic adhesive conductive tape has excellent adhesive force
Excellent Impedance Matching
Excellent flexibility, heat resistance and thin
Application
TV/Display/Computers/Mobile Phone
Product Laminating Structure:
ST-IMS01
PET Base Liner |
Hot melt adhesive |
Conductive fabric |
Conductive adhesive |
Release Liner |
Size: 50-1000MM*200M
ST-IMS02
AL/PET Base Liner |
Conductive adhesive |
Release Liner |
Size: 50-1000MM*200M
ST-IMS03
AL/PET Base Liner |
Dielectric Hot Melt |
Hot melt adhesive |
Release Liner |
Size:50-1000MM*200M
ST-IMS04
Aluminum Foil Layer |
PET Substrate Layer |
Dielectric Layer |
Hot melt adhesive |
Release Liner Layer |
Size:50-1000MM*200M
ST-IMS05
Aluminum Foil Layer |
PET Substrate Layer |
Acrylic Adhesive layer |
PET Release Liner Layer |
Size:65/52MM*200M
ST-IMS07
PET Black Layer |
Aluminum Foil Layer |
Dielectric Layer |
Substrate Layer |
Acrylic Adhesive layer |
PET Release Liner Layer |
Size:50-1000MM*200M
Typical Specification:
| ST-IMS01 | ST-IMS02 | ST-IMS03 | ST-IMS04 | ST-IMS05 | ST-IMS07 |
Test Items | Test Method | Value | Value | Value | Value | Value | Value |
Thickness | ASTM D3652 | 155±10%（μm） | 45±10%（μm） | 160±10%（μm） | 80±10%（μm） | 80±10%（μm） | 180±10%（μm） |
Adhesive Force | ASTM D 3330 | Min 1500gf/25mm | Min 700gf/25mm | Min 1000gf/25mm | Min 1000gf/25mm | Min 1000gf/25mm | Min 1000gf/25mm |
Resistance Square | | Max.300Ω/M2 | Max.3Ω/M2 | | | | |
