Specifications
Model Travel X/Y/Z(mm) 300/300/100mm
Max Load Y-AXIS / Z-AXIS 10kg/5kg
Moving Speed (mm/sec) 1~800 / 400

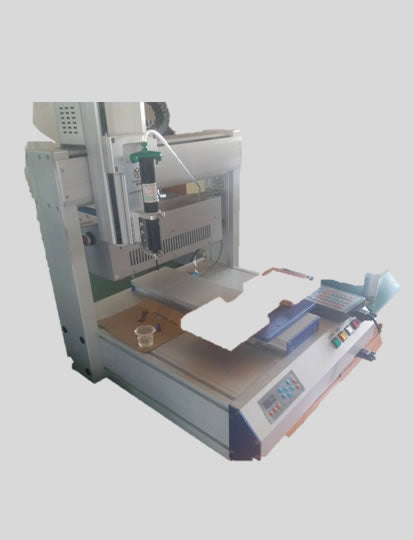

Glue Dispending and UV Curing Integrated Machine for Manufacturing OEM Sale
Full Local Technical Support Available in California, Texas, New York and Most Regions in USA and Canada; Regional Free Shipping Pending Seasonal OEM Promotion
Motor Drive Accuracy 0.02mm/Axis
Repetition Accuracy 0.02mm/ Axis
Recording Mode Min 100 Models' data, each model collect 4000 points(can be uploaded to PC
Display Mode Teach Pendant LCD
Motor Micro step motor
Operating Mode PTP & CP
Conveying Synchronous driving belt Sports gap function 3 axis
Edit Mode PC Teaching box/PC I/0 Signal 16Inputs / 16 Outputs
External control interface RS232
Input Power Supply AC110V ~ 220V（switchable with inside switch）
Working Temperature 5 – 40℃
Techinical Support & Local Service
Please use our 7/24 Online Technical Hotline Service for any product purchase or shipping status related questions
For Local Technical Support, please check our Online Support to get service map to see if your zipcode is in our local service coverage plan; Or an out-of-region service can be arranged to address your issue
Warranty & Return Policies
STANDARD ONE YEAR MANUFACTURER WARRANTY:
The manufacturer warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year for the original invoice date. Shipping and handling fees are to be paid for by the customer. The manufacturer agrees, at its option during the warranty period, to repair and defect in material or workmanship or to furnish a repaired or refurbished product of equal value in exchange without charge (except for a fee for shipping, handling, packing, return postage, and insurance which will be incurred by the customer). Such repair or replacement is subject to verification of the defect or malfunction and proof of purchase as confirmed by showing the model number on original dated sales receipt.
This warranty does not include: Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental or contract trade or commercial use Any condition resulting from incorrect or inadequate maintenance or care Damage resulting from misuse, abuse, negligence, accidents or shipping damage Dissatisfaction due to buyer’s remorse Normal wear and tear Damages incurred during transportation Damages incurred during assembly or maintenance Any used, previously displayed items
CONDITIONAL RETURN POLICIES
Nodesus provides charged return support to certain technical products or services where an "Accept Return" tag is attached; Operation costs such as Shipping and Handling, Re-instock, Re-furbishment, etc may incur.
Machine Size (WxDxH mm) 600×530×600 Packing Size (WxDxH mm) 700×630×700 Weight (kg) 45kg
