HH Two-Color Shuttle Pad Printing Machine HL/HLC Series for Print Services OEM Sale

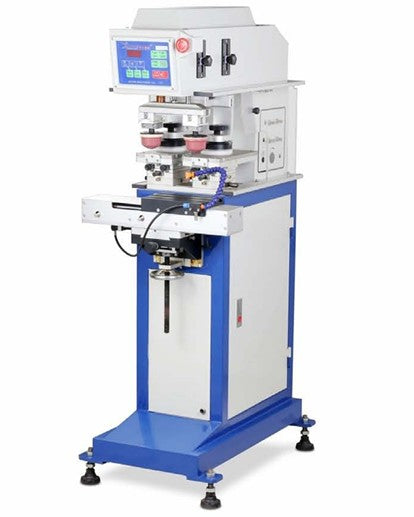

HL-200D-S/ HLC-160D-S Industrial Two-Color Shuttle Pad Printing Machine
Plate size 200*100mm/300mm*100mm
Machine Introduction:
HL-200D-S:
Industrial Two-Color Ink Tray Shuttle Pad Printing Machine is one of the series pad printing machines developed by our company according to the market demand, which can print one color or two colors.
HLC-200D-S:
The pad printer is a two-color sealed cup pad printer ideal for printing on items that require an extended forward stroke. It’s suitable for 2-Color small image printing, widely applied in many industries including electrical appliances, electronic, stationery, toys, plastic, gift, etc.
This two-color pad printing machine is suitable for 2-Color small image printing, widely applied in many industries including plastic, gift, stationery, toys, electronic, electrical appliances, etc.
Machine Features:
Microprocessor control, clean ink scraping, low noise, simple operation, stable performance;
Independent adjustment of up and down, forward and rear stroke.

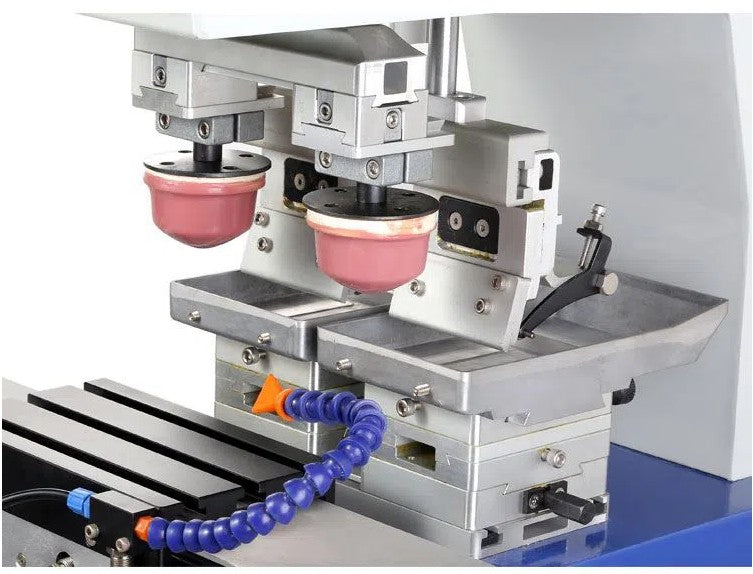

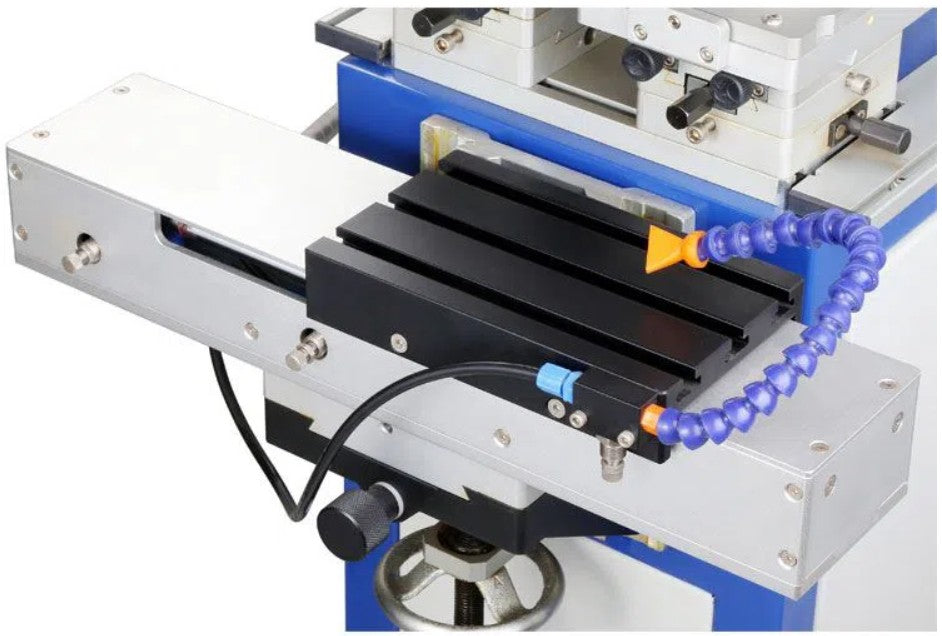

Case Pictures

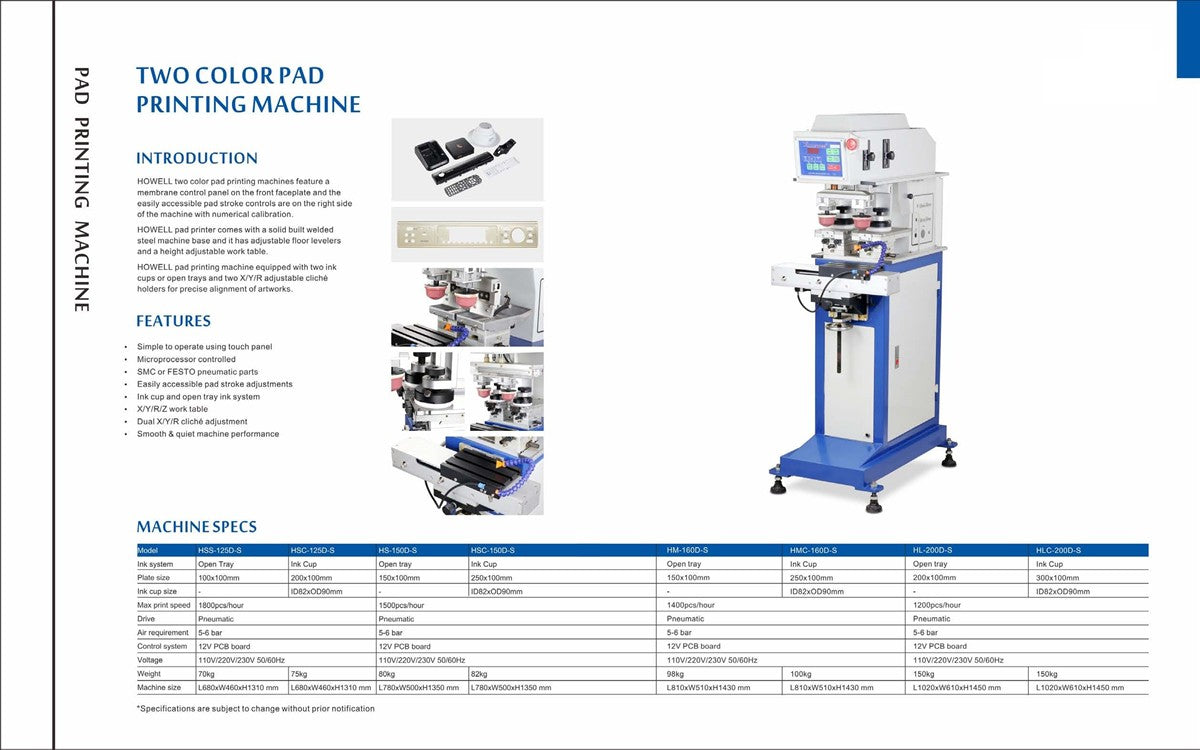

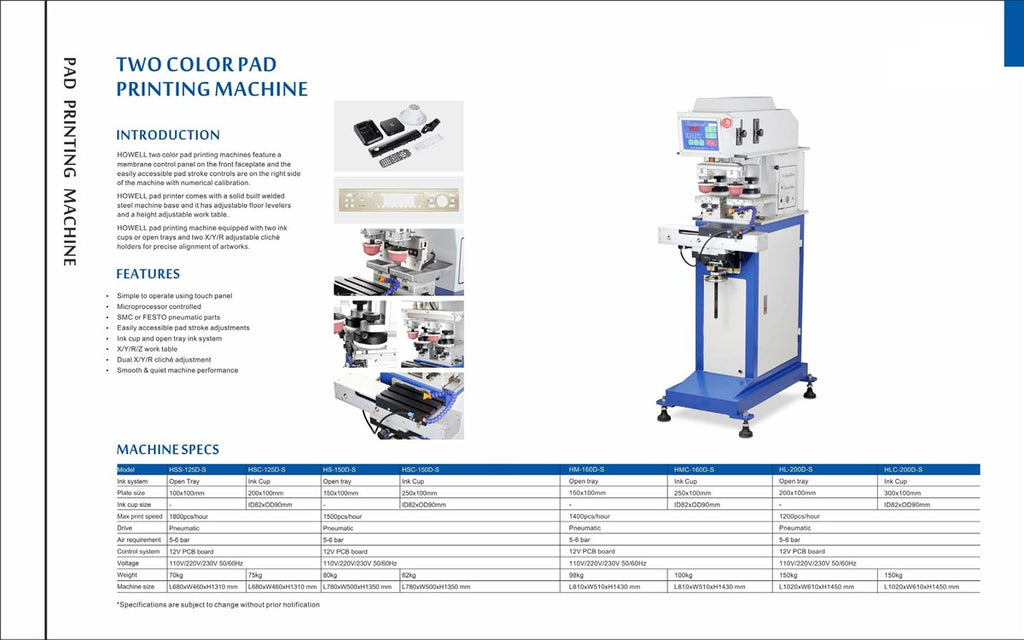

Specification
|
Model |
HL-200D-S/ HLC-200D-S |
|
Work Dimension |
1100mm(L) X 580mm(W) X 1450mm(H) |
|
Shipping Dimension |
1160mm(L) X 640mm(W) X 1510mm(H) |
|
Gross Weight |
150 Kg/150 Kg |
|
Rated Watt |
40W |
|
Rated Voltage |
110V/220V/230V 50/60HZ |
|
Rated Amperage |
N/A |
|
Pressed Air/Vacuum |
Pneumatic 5-6 BAR |
|
OS / Control System |
12V PCB Board |
|
Software Revision |
N/A |
|
Printing Color |
2-Color |
|
Printing Plate Size |
200*100mm/300mm*100mm |
|
Ink System |
Open Tray/Ink Cup ID82mm*OD90mm |
|
Max Printing Area |
80mm*80mm |
|
Horizontal stroke |
N/A |
|
Vertical stroke |
N/A |
|
Working Speed |
1200pcs/hour |
|
Printing Accuracy |
±0.03mm |
