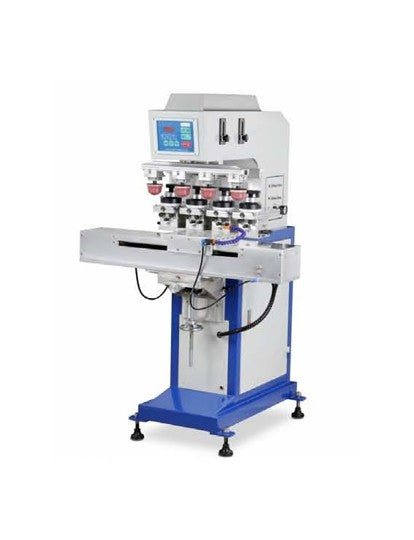

HM-160C-4/ HMC-160C-4 Industrial 4-Color Shuttle Pad Printing Machine
Plate size:150*100mm/250mm*100mm
Machine Introduction:
HM-160C-4:
Industrial 4-Color Ink Tray Shuttle Pad Printing Machine is one of the series pad printing machines developed according to the market demand, which can print up to 4 colors.
HSC-125D-S:
The pad printer is a 4-color sealed cup pad printer ideal for printing on items that require an extended forward stroke. It’s suitable for 4 color small image printing, widely applied in many industries including electrical appliances, electronic, stationery, toys, plastic, gift, etc.
This 4-color pad printing machine is suitable for single color small image printing, widely applied in many industries including plastic, gift, stationery, toys, electronic, electrical appliances, etc.
Machine Features:
Microprocessor control, clean ink scraping, low noise, simple operation, stable performance;
Independent adjustment of up and down, forward and rear stroke.

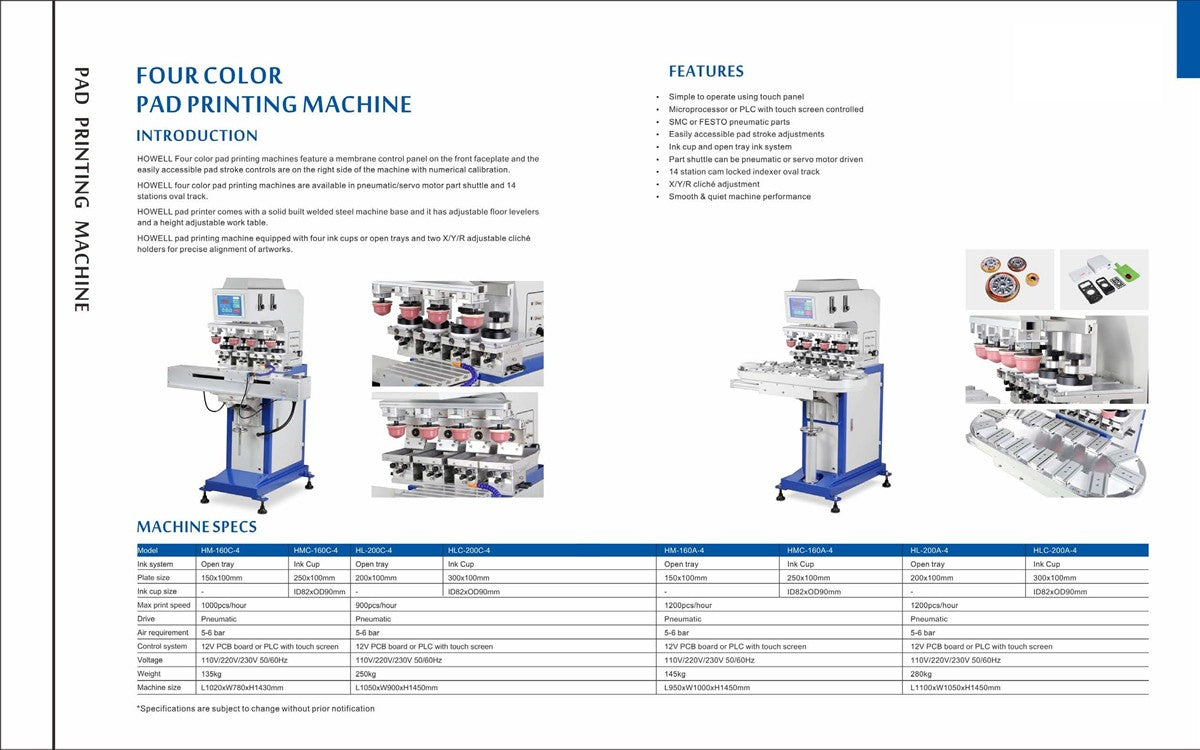

Specification
Model | HM-160C-4/ HMC-160C-4 |
Work Dimension | 1020mm(L) X 780mm(W) X 1430mm(H) |
Shipping Dimension | 1080mm(L) X 840mm(W) X 1490mm(H) |
Gross Weight （Kg） | 135 Kg/75Kg |
Rated Watt | 40W |
Rated Voltage | 110V/220V/230V 50/60HZ |
Rated Amperage | N/A |
Pressed Air/Vacuum | Pneumatic 5-6 bar |
OS / Control System | 12V PCB Board or PLC with touch screen |
Software Revision | N/A |
Printing Color | 4 Color |
Printing Plate Size | 150*100mm/250mm*100mm |
Ink Cup Size | ID82mm*OD90mm |
Max Printing Area | 80mm*80mm |
Horizontal stroke | N/A |
Vertical stroke | N/A |
Working Speed | 1000pcs/hour |
Printing Accuracy | ±0.03mm |
Case Pictures
