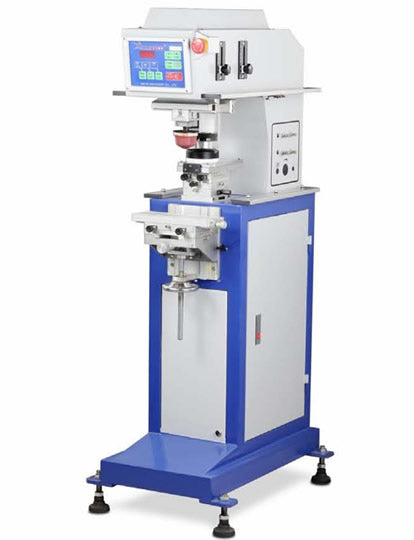

HM-160D-1/ HMC-160D-1 Manual Open Ink Tray Single Color Pad Printing Machine
Single color open ink tray pad printing machine is one of the series pad printing machines developed by our company according to the market demand, which can only print one color.
Plate Size 150*100mm/250mm*100mmHM-160D-1:
HMC-160D-1:
The pad printer is a one-color sealed cup pad printer ideal for printing on items that require an extended forward stroke. It’s suitable for single color small image printing, widely applied in many industries including electrical appliances, electronic, stationery, toys, plastic, gift, etc.
This single color pad printing machine is suitable for single color small image printing, widely applied in many industries including plastic, gift, stationery, toys, electronic, electrical appliances, etc.

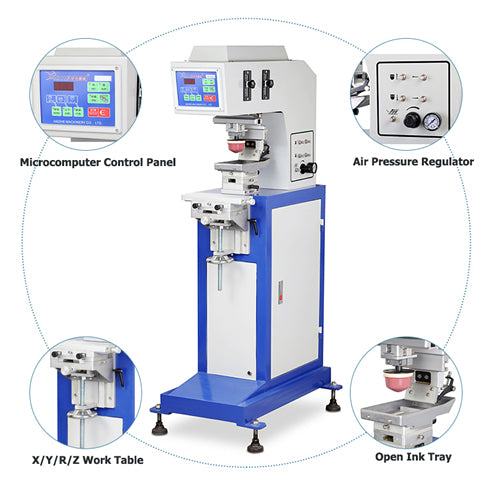

Machine Features:
Microprocessor control, clean ink scraping, low noise, simple operation, stable performance;
Independent adjustment of up and down, forward and rear stroke.

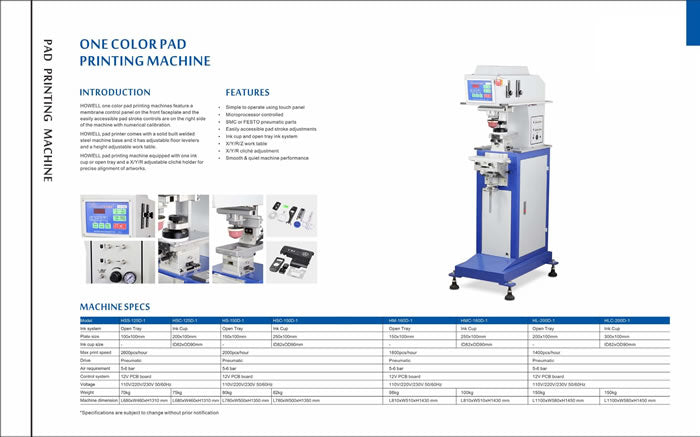

Specification
Model | HM-160D-1/ HMC-150D-1 |
Work Dimension | 810mm(L) X 510mm(W) X 1430mm(H) |
Shipping Dimension | 870mm(L) X 570mm(W) X 1490mm(H) |
Gross Weight （Kg） | 98 Kg/100 Kg |
Rated Watt | 40W |
Rated Voltage | 110V/220V/230V 50/60HZ |
Rated Amperage | N/A |
Pressed Air/Vacuum | Pneumatic 5-6 BAR |
OS / Control System | 12V PCB Board |
Printing Color | Single Color |
Printing Plate Size | 150*100mm/250mm*100mm |
Ink System | Open Tray/Ink Cup ID82mm*OD90mm |
Max Printing Area | 80mm*80mm |
Working Speed | 1800pcs/hour |
Printing Accuracy | ±0.03mm |
