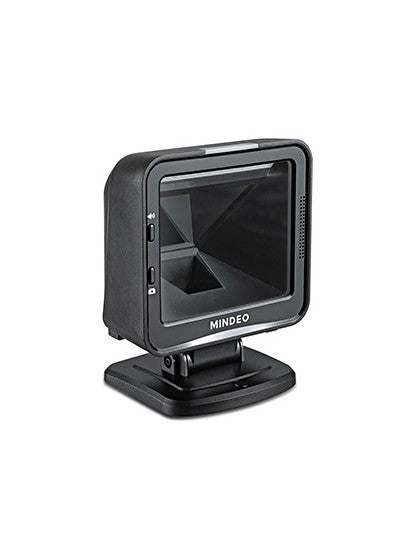

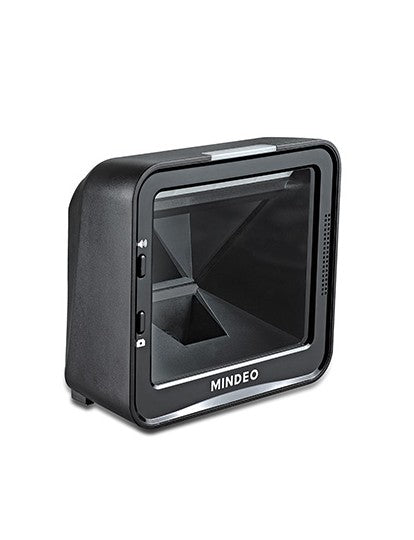

MP8600 1D and 2D Barcode Image Reading Platform for Inventory Control Lot Sale

MP8600 Image Platform is equipped with a new master chip and 1.3 million pixel scanning lens, it adopts high-performance image technology to read commodity code and payment code efficiently.

A standard packing includes an image platform, a USB cable and a quick guide.

Accessories include a stand, a RS232 cable.

Use a piece of dry and soft cloth when cleaning the image platform is in need.

Product Features:

-High-performance imaging technology provides support to read 1D and 2D barcodes from both paper labels and  mobile devices.

-Wide field-of-view, omni-directional scanning capability and advanced decoding software facilitate cashiers to scan  all barcodes on first pass.

-Solid-state electronics for silent operation and superior reliability.

-Loud speaker and soft blue/green LED offer convenient and comfortable user experience.

-Multiple interfaces enable the image platform to utilize with different devices.

Specification

Rated Voltage:5 ± 0.25 VDC

Rated Amperage: Working: 410 mA, (Max: 700 mA)

Connector Type: RJ-45 phone jack connector

Indicator: Beeper, LED

Interface Supported: RS-232, USB Keyboard, USB virtual COM

Programming Method: Manual (reading special barcode)

Image Size: 1280 × 1024 pixels

Light Source: 2700k

Scanning Angle: ±70°, ±60°, 360° (Skew, Pitch, Roll)

Decoding Capability: Minimum Resolution 4 mil, 1 mil = 0.0254 mm

Temperature: 0° to 50°C, Operating; -40° to 70°C, Storage

Humidity: 5% to 95% (non-condensing)

Accessories：1* image platform, 1* USB cable，1* quick guide，1* stand, 1* RS232 cable.

Product Size: 14.5*15.3*8.2 cm/5.7 *6.0 *3.2 in (without stand)

18.7*15.3*11.2 cm/7.4*6.0*4.4 in (with stand)

Carton Size:12set/carton, 480mm(L) X 340mm(W) X340 mm(H);13.5kg

Safety Specification

EMC: EN55032, EN55024

Electrical Safety: EN60950-1

Photobiological Safety: EN62471:2008

Illumination: 0~100,000 LUX

Sealing: IP52
