Description
Molecular Pump Vacuum Unit KT-110/150 Series for Test and Measurement OEM Sale

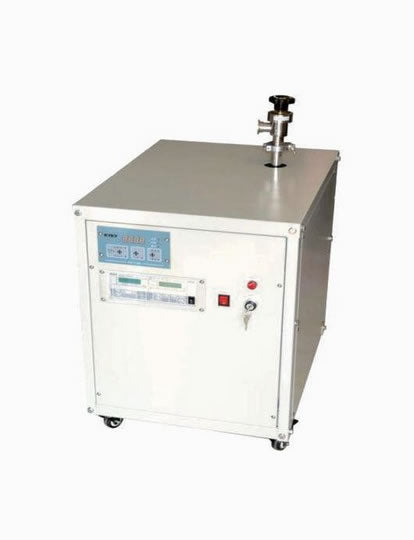

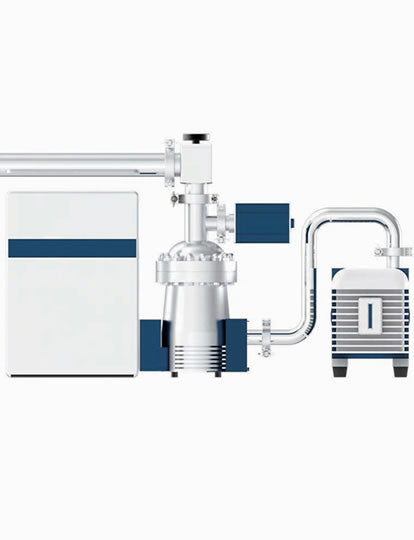

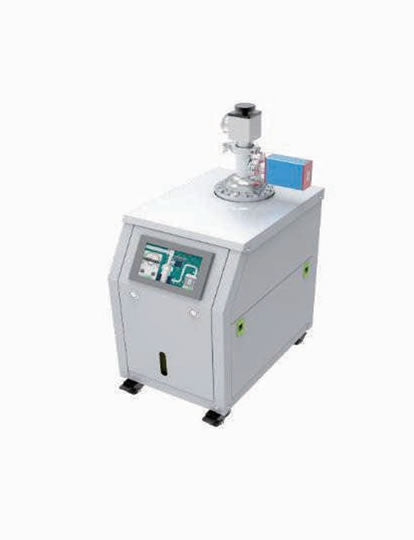

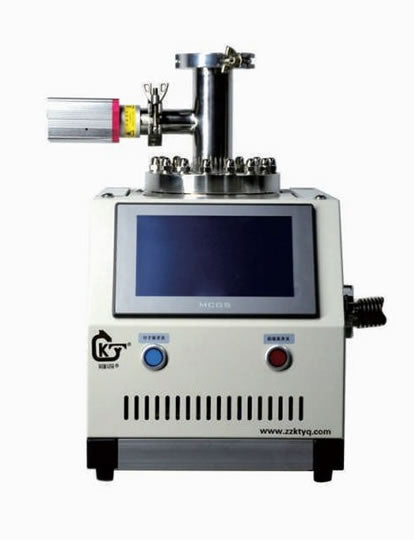

The standard compound molecular pump unit is a clean high vacuum acquisition equipment. According to the principle of vacuum knowledge, this equipment is a vacuum acquisition system composed of mechanical pump and turbomolecular pump. It has the characteristics of fast start-up time, high vacuum degree and convenient operation. It is widely used in various fields such as surface analysis, accelerator technology, plasma technology, electric vacuum device manufacturing and vacuum, The specific composition of the equipment mainly includes vacuum measurement system, vacuum chamber, valve, vacuum pipeline and circuit control system
|
Model |
KT-110F |
KT-150YCF |
KT-150CF |
|
Control Mode |
Manual |
Manual Man machine interface control |
Manual Man machine interface control |
|
Front stage pump |
Bipolar 4-vane vacuum pump |
Bipolar 4-vane vacuum pump |
N/A |
|
Front stage pump pumping rate |
2.2L/S |
2.2L/S |
N/A |
|
Limit pressure of front stage pump |
≤5Pa |
≤5Pa |
N/A |
|
Molecular pump |
F-100/110 43000RPM |
FF-100/150 51000RPM |
F-100/110 43000RPM |
|
Molecular pump pumping rate |
100L/S |
140L/S |
140L/S |
|
Molecular pump start time |
≤3min |
≤2min |
≤2min |
|
Unload limit pressure |
≤1x10-4Pa |
≤5Pa |
N/A |
|
Vacuum measurement range |
Resistance unit 1E+5 to 1E-1Pa Ionization unit 5 to 1E-5Pa |
Cold cathode standard Vacuum gauge 1E+2 to 1E-5Pa |
Cold cathode standard Vacuum gauge 1E+2 to 1E-5Pa |
|
Air extraction interface |
KF25 |
KF25 |
KF25 |
|
Valve Type |
KF25 Manual baffle valve |
KF25 Manual baffle valve |
KF25 Manual baffle valve |
|
Power Supply |
AC220V AC110V |
AC220V AC110V |
AC220V AC110V |
|
System Power |
1.5KW |
1.5KW |
1.5KW |
|
Ambient Temperature |
5-32℃ |
5-32℃ |
5-32℃ |
|
Cooling |
Forced air cooling |
Forced air cooling |
Forced air cooling |
|
Humidity |
≤80% |
≤80% |
≤80% |
|
Noise |
＜60dB |
＜60dB |
＜60dB |
|
Dimension |
430x500x650mm |
330x495x550mm |
250x360x300mm |
|
Weight |
65Kg |
55Kg |
25Kg |
|
Accessories:KF25 high vacuum baffle valve 1x,KF25 clamping band 3x, stainless steel bellows 1x,power cable 1x |
|||
