Specifications

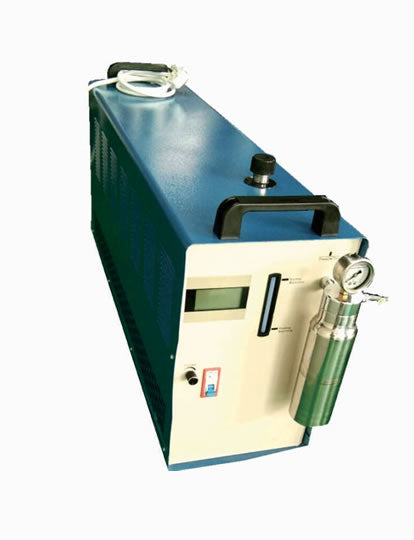

OXYHYDROGEN Flame Water Welder for Welding and Melting of Alloy/Non Ferrous Metal/Metal/Quartz:

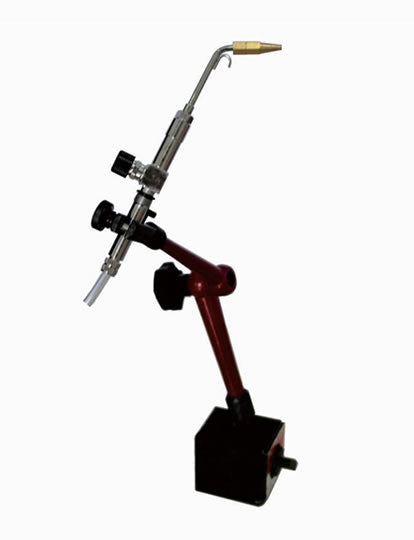

The mixture of water and potassium hydroxide is added into the stainless steel electrolytic cell for electrolysis to produce hydrogen and oxygen gas. After being ignited by a special hydrogen and oxygen flame gun, a high temperature hydrogen flame (up to 3000 ℃) is generated
Application:
Welding and melting of alloys, non-ferrous metals and metals, and processing of refractory products such as quartz
Product Name | Oxyhydrogen flame water welder | |
Model | KT-TH400 | KT-TH600 |
Power Supply | 220V±10% 50/60Hz,110V Optional | |
Max Power | 1.5KW | 2.5KW |
Electrolytic cylinder QTY | 4x | 6x |
Water Consuming | 0.12L/H | 0.18L/H |
Electrolytic cylinder volume | 8.4L | 12.8L |
Max Gas Output | 400L/H | 600L/H |
Dimension | 760x300x540mm | 1020x300x540mm |
Weight | 26Kg | 36Kg |
Accessories | Flame gun 1x,gas pipe 5m,liquid funnel 1x,fire stop valve 1x |
