Vacuum Test Chamber for Test and Measurement OEM Sale
Vacuum Test Chamber for Test and Measurement OEM Sale
Couldn't load pickup availability

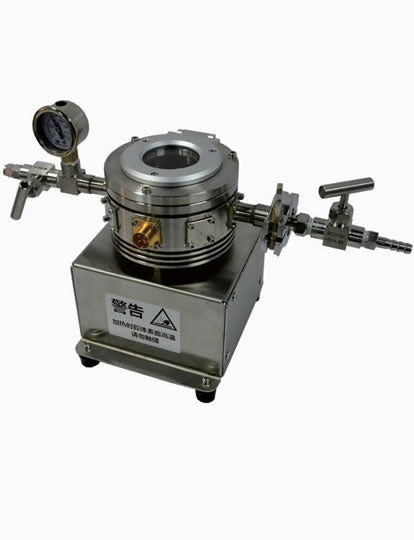

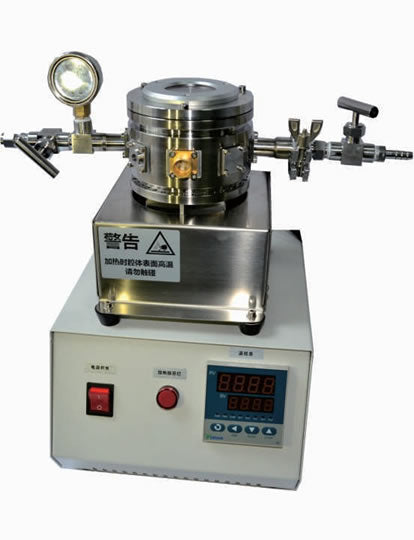

Vacuum test chamber:
It is mainly used for electrical signal testing in gas sensitive materials or other environmentally sensitive materials. A stainless steel heating bearing table is installed inside the test chamber, the table top is 50x50, and the table top can be heated up to 350 ℃. The cavity is designed with air inlet, vacuum pumping interface and 2-4-core signal vacuum electrode, and 8-core electrode can be selected at most. When in use, fix the device to be detected on the heating table, connect the signal line introduced into the cavity to the pin of the test device, and the external signal line links the test instrument to test the electronic signal.
|
Thermostat |
|
|
Heating temperature |
35-350℃ |
|
Temperature control accuracy |
±1℃ |
|
Thermocouple |
PT100 High Precision Sensor |
|
Temperature control meter |
Yudian |
|
Program Temperature Control |
N(Optional:30 stage program temperature control) |
|
Heating Power |
≤300W |
|
Heating power supply |
AC 220V |
|
Dimension |
230x230x125mm |
|
Weight |
6Kg |
|
vacuum Chamber |
|
|
Chamber Material |
SUS304 |
|
Inner chamber size |
φ85x40mm |
|
Heating table dimension |
φ50mm |
|
Max heating temperature |
350℃ |
|
Signal output terminal |
BNC Female connector |
|
Signal detect cable |
2x or 4x 0.3 square mm copper wire |
|
Exhaust port |
KF16 |
|
Air inlet |
6MM ferrule |
|
Positive pressure |
≤0.1MPa |
|
Negative pressure |
Mechanical pump vacuum≤5Pa,molecular pump vaccum≤10-3Pa |
|
Observation cavity |
φ45 |
|
Observation cavity material |
High transmittance quartz glass |
|
Options |
Gas injection silica get port SMA905 optical fiber port |
