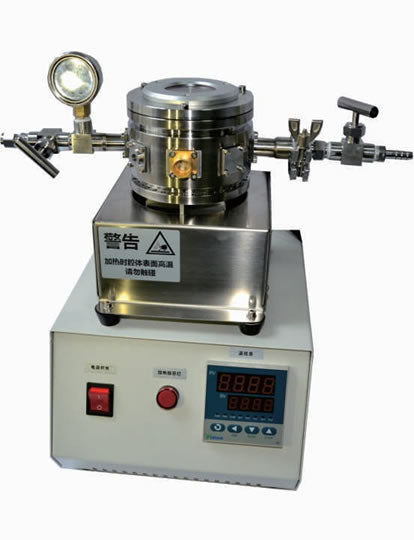

Vacuum test chamber:

It is mainly used for electrical signal testing in gas sensitive materials or other environmentally sensitive materials. A stainless steel heating bearing table is installed inside the test chamber, the table top is 50x50, and the table top can be heated up to 350 ℃. The cavity is designed with air inlet, vacuum pumping interface and 2-4-core signal vacuum electrode, and 8-core electrode can be selected at most. When in use, fix the device to be detected on the heating table, connect the signal line introduced into the cavity to the pin of the test device, and the external signal line links the test instrument to test the electronic signal.

Thermostat
Heating temperature	35-350℃
Temperature control accuracy	±1℃
Thermocouple	PT100 High Precision Sensor
Temperature control meter	Yudian
Program Temperature Control	N(Optional:30 stage program temperature control)
Heating Power	≤300W
Heating power supply	AC 220V
Dimension	230x230x125mm
Weight	6Kg

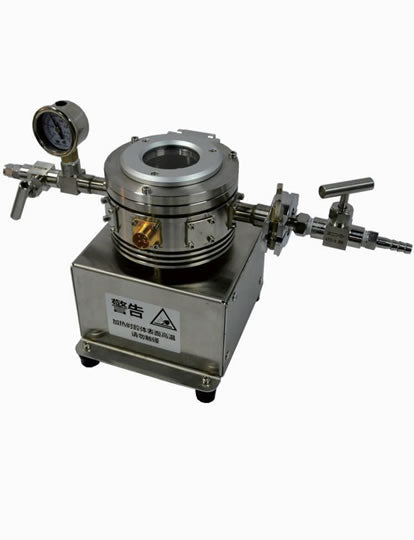

vacuum Chamber
Chamber Material	SUS304
Inner chamber size	φ85x40mm
Heating table dimension	φ50mm
Max heating temperature	350℃
Signal output terminal	BNC Female connector
Signal detect cable	2x or 4x 0.3 square mm copper wire
Exhaust port	KF16
Air inlet	6MM ferrule
Positive pressure	≤0.1MPa
Negative pressure	Mechanical pump vacuum≤5Pa,molecular pump vaccum≤10-3Pa
Observation cavity	φ45
Observation cavity material	High transmittance quartz glass
Options	Gas injection silica get port SMA905 optical fiber port
