Specifications
UTAB Series Nitrogen Generator:
The UTAB series has been reduced in size by half while having all the functions of the original all-in-one. Its compact size allows it to be placed under a standard laboratory table, further saving valuable laboratory space.
● Applicable to LCMS/MS of different brands and models.
● Built-in semiconductor freeze dryer and fin condenser to assist water removal.
● Choose imported efficient nitrogen separation film.
● Integrated control board is used to ensure the reliability of the instrument.
● There are multiple safety Settings inside the instrument.
● Choose imported double air compressor configuration, prolong the service life of the equipment and enhance its stability.
● With perfect reminder service function, can timely remind: maintenance, fault information and maintenance node.
● Small enough to be placed under the bench
● Integrated design, simple installation; With universal wheel, can move freely; Low noise
BIO Series Nitrogen Generator:
The BIO Series is small size and is an integral high purity gas generator to meet all the gas needs of the latest models of mass spectrometers.
● Wide applicability.
● Built-in freeze dryer, with high water removal efficiency.
● Selectively remove oxygen, water, particles, phthalates and other impurities.
● According to the model can provide one or more high purity nitrogen and clean air.
● Use efficient and stable nitrogen separation membrane.
● There are multiple safety Settings inside the instrument.
● Choose imported double air compressor configuration, prolong the service life of the equipment and enhance its stability.
● Integrated control board is used to ensure the reliability of the instrument
● With perfect reminder service function, can timely remind: maintenance, fault information and maintenance node
● Large HD LCD display, Bevel design; Integrated design, simple installation; With universal wheel, can move freely; Low noise

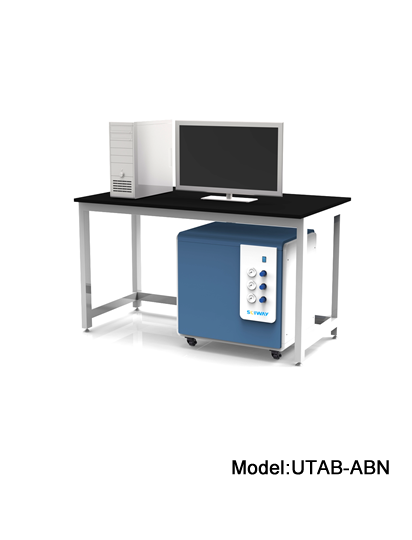

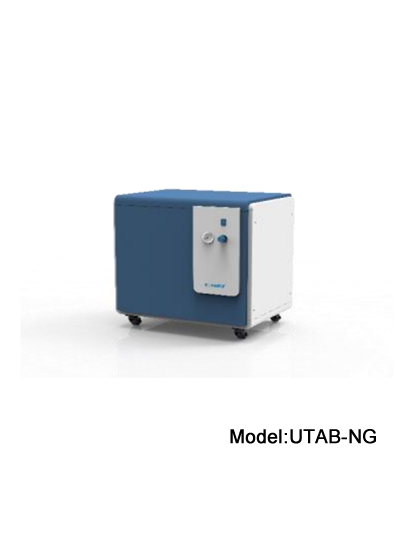

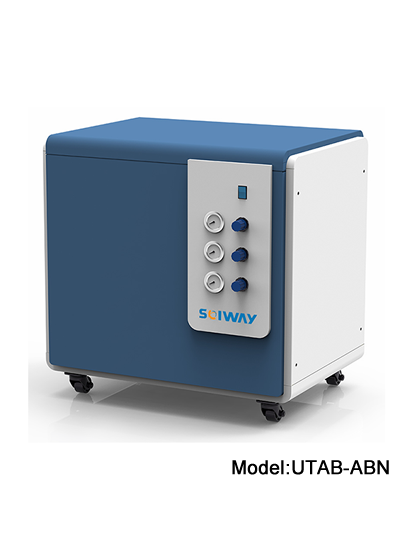

UTAB Series Nitrogen Generator:
Model | UTAB-ABN | UTAB-NG |
Apply to | For a SCIEX 3200/4000/4500/5000/5500 mass spectrometry gas supplying | For Waters，Agilent，ThermoFlsher mass spectrometry gas supplying |
Curtain Gas | 12L/min@60 psi | 35L/min@116psi |
Source Gas | 25L/min@110psi | / |
Exhaust Gas | 12L/min@60psi | / |
IoT Monitoring | Optional Assembly | |
Other General Specifications | l Particles:<0.01µm l Phthalic acid: none l Droplets: None l Gas outlet Specification:3*1/4” BSPP or 1*₵6 BSPP l Effluent outlet specifications:₵8 quick connectors l Voltage: 220 VAC±10% l Frequency: 50/60 Hz l Power: 2.2KW l Weight: 220.5 lbs l Product Dimensions: 75 * 50 * 75cm l Noise: ≤55 dB@1m | |

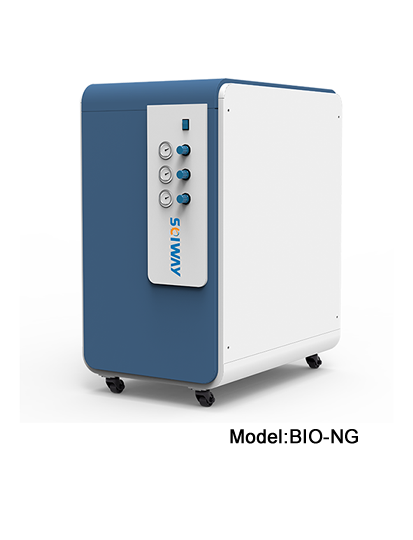

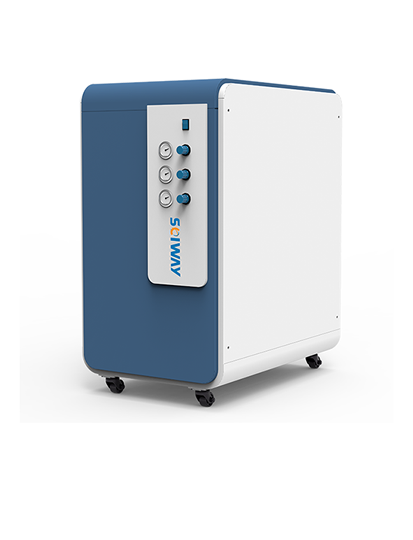

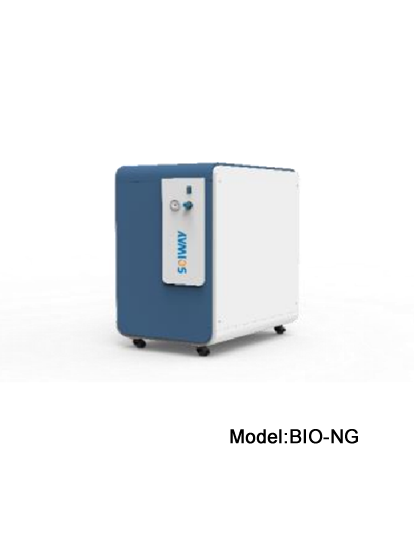

BIO Series Nitrogen Generator:
Model | BIO-ABN+ | BIO-NG+ |
Apply to | For a SCIEX 5600/6500/6600 mass spectrometry gas supplying | For Waters，Agilent，ThermoFisher mass spectrometry gas supplying |
Curtain Gas | 24L/min@60 psi | 70L/min@116psi |
Source Gas | 50L/min@110psi | / |
Exhaust Gas | 24L/min@60psi | / |
IoT Monitoring | Optional | |
Electronic screen | ||
Other General Specifications | l Particles:<0.01µm l Phthalic acid: none l Droplets: None l Gas outlet Specification:3*1/4” BSPP l Effluent outlet specifications:₵8 quick connectors l Voltage: 220 VAC±10% l Frequency: 50/60 Hz l Electric current: 10A l Power: 2.2KW l Weight: 100kg l Product Dimensions: 60 × 90 × 112 cm (Dimensions vary between series) l Noise:55~60 dB@1m | |
