S-Type Load Cell _ Weighing Sensor Series High Precision for Engineering Research OEM Sale

The resistance strain sensor works on the principle that the resistance of the resistance strain gauge changes when it is deformed. It is mainly composed of elastic element, resistance strain gauge, measuring circuit and transmission cable.

Weighing Sensor Load Cell:

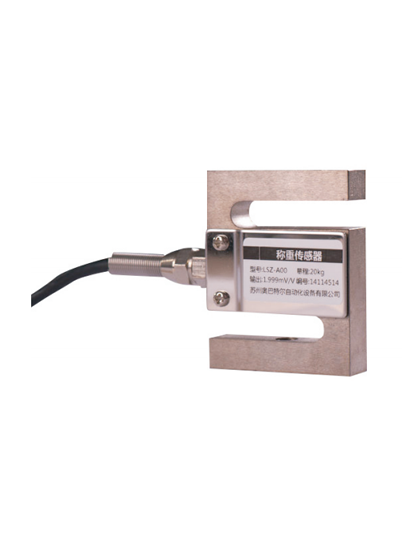

LSZ-A00:

• S-Type load cell
• Senior alloy steel
• Easy to install, stable & Reliable

Multiple applications: pull and push, testing machine, batching scales, crane scales, special scales, etc.

Contact us for other capacities that are not listed: 0 ~ 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1t, 2t, 3t, 5t, 7.5t, 10t with Quantity and Specification.

Torque Sensor:

MRN-01:

• Digital output signal
• Can transmit static torque signal, dynamic torque signal, rotary torque signal
• Easy to install, Stable, Portable and Reliable

Multiple applications: torque, speed and power measurement for motor, generator, fan, aircraft, mine, reducer, ship, diesel, etc.

Pressure Transducer:

OT-500 :

• Suitable for position detection of various types of equipment:Injection molding machine, die casting machine, rubber machine, EVA injection molding machine, etc.;
• Uninterrupted resolution;
• Cold resistance, high temperature resistance, anti-aging;
• Anti-static and radiation, high wear-resistant engineering slip ring and seal;
• Sensor travels from 5mm to 50mm.

Vortex flowmeter :

LUGB/E:

• Multiple caliber options;
• Suitable for multiple pipe types;
• Multiple application fields: Petroleum, chemical, metallurgy, thermal, textile, paper making, etc. industries that need to measure and control saturated steam, superheated steam, compressed air and general air, liquids.

Specification

Weighing Sensor(LSZ-A00)

Material: Alloy Steel Seasoned

Capacities: 0 ~ 10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1t, 2t, 3t, 5t, 7.5t, 10t

Safe Overload: 150%

Repeatability: ± 0.3% of rated output

Safe Temperature Range: -10°C ~ +70°C

Temperature Effect on Output: ≤0.05% of applied output/°C

Temperature Effect on Zero: ≤0.05% of rated output/°C

Input Impedance: 365Ω ±20Ω

Output Impedance: 350Ω ±5Ω

Rated Excitation: 5V DC/AC

Maximum Excitation: 10V DC/AC

Protection Class: IP65
