Specifications

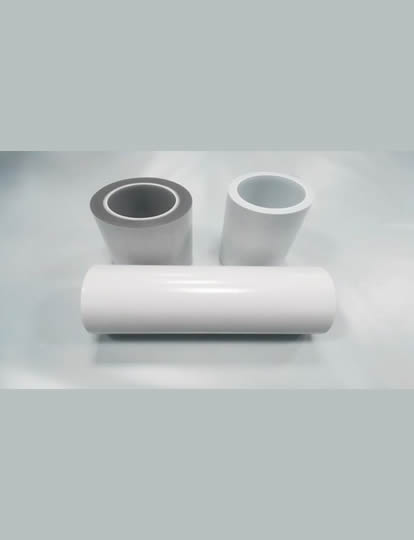

Thermal Spread Tape ST-TIMS01,ST-TIMS02
Feature:
Excellent adhesive
Excellent thermal conductive
Flexible
Thin
Application for TV, Display, Notebook Computer, Mobile Phone, heat sink assembly
Storage condition；20-25℃，60±10%
Laminating Layer Structure:
Thermal conductive adhesive layer |
Glass fiber substrate layer |
Thermal conductive adhesive layer |
Paper release liner layer |
Specification
| ST-TIMS01 | ST-TDTS02 | |
Items | Test Method | Value | Value |
Thickness(excluding release liner) | ASTM D 3652 | 200±10%（μm） | 300±10%（μm） |
Color | Vision | Gray | White |
180° Peeling Strength | ASTM D 3330 | SUS MIN 1000gf/25mm | SUS MIN 1000gf/25mm |
Thermal conductivity | ASTM D 5470 | 0.9 W/m.K | 0.8 W/m.K |
50-1000mm*200m/Roll
