Specifications
Thermal Spread Tape ST-TDTS01
Feature:
Excellent adhesive
Excellent thermal radiation
Fast thermal diffusion effect
Thin

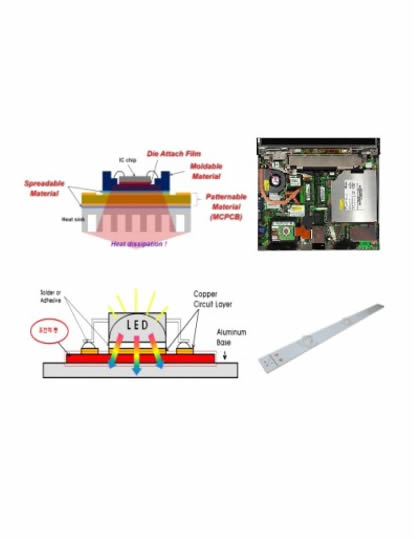

Application for TV, Display, Notebook Computer, Mobile Phone, heat sink assembly
Storage condition；20-25℃，60±10%
Laminating Layer Structure:
Ceramic coating layer |
Copper foil substrate layer |
Acrylic adhesive layer |
PET release liner layer |
Thermal Spread Tape ST-TDTS04
Feature:
Single side acrylic conductive fabric tape with excellent adhesive force
Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness
Easy to handle on small products
Shielding EMI
Application for TV, Display, Notebook Computer, Mobile Phone, heat sink assembly
Storage condition；23±5℃，50±10%
Laminating Layer Structure:
Block insulating liner(radiation) |
PET Film |
Thermal radiation and diffusion adhesive liner |
Copper foil |
Thermal diffusion adhesive |
Release film |
Thermal Spread Tape ST-TDTS05
Feature:
Single side acrylic conductive tape with excellent adhesive force
Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness
Easy to handle on small products
Shielding EMI
Application for TV, Display, Notebook Computer, Mobile Phone
Storage condition；23±5℃，50±10%
Laminating Layer Structure:
White insulator |
PET film |
Radiation and diffusion adhesive liner |
Aluminum foil |
Radiation and diffusion adhesive liner |
Copper foil |
Thermal diffusion |
PET film |
Thermal Spread Tape ST-TDTS06
Feature:
Single side adhesive tape with excellent adhesive force
Excellent heat diffusion and bonding performance
Application for Notebook Computer, Mobile Phone,Display
Storage condition；23±5℃，50±10%
Laminating Layer Structure:
PET film |
Radiation and diffusion adhesive liner |
Copper foil |
Thermal diffusion adhesive layer |
Release liner |
Thermal Spread Tape ST-TDTS07
Feature:
Single side adhesive tape with excellent adhesive force
Excellent heat diffusion and bonding performance
Application for Notebook Computer, Mobile Phone,Display
Storage condition；23±5℃，50±10%
Laminating Layer Structure:
PET film |
Radiation and diffusion adhesive liner |
Aluminum foil |
Thermal diffusion adhesive layer |
Release liner |
Thermal Spread Tape ST-TDTS11
Feature:
Single side acrylic and thermal conductive tape with excellent adhesive force
Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness
Easy to handle on small products
Shielding EMI
Application for TV, Display, Notebook Computer, Mobile Phone, Heat Sink Assembly
Storage condition；23±5℃，50±10%
Laminating Layer Structure:
Conductive adhesive |
PET Base |
Conductive adhesive |
Release film |

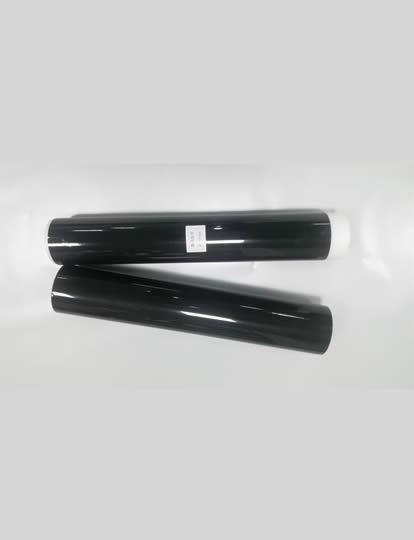

50-1000mm*200m/Roll
Specification
| ST-TDTS01 | ST-TDTS04 | ST-TDTS05 | ST-TDTS06 | ST-TDTS07 | ST-TDTS11 | |
Items | Test Method | Value | Value | Value | Value | Value | Value |
Thickness(excluding release liner) | ASTM D 3652 | 50±10%（μm） | 65±10%（μm） | 85±10%（μm） | 53±10%（μm） | 80±10%（μm） | 85±10%（μm） |
Color | Vision |
| Black | White | Black | Black | Gray |
180° Peeling Strength | ASTM D 3330 | SUS MIN 1000gf/25mm | MIN 1100gf/25mm | MIN 1100gf/25mm | MIN 1100gf/25mm | Average 1100gf/25mm | MIN 1100gf/25mm |
Thermal conductivity | ASTM E 1461 | 180 W/m.K | 250 W/m.K Horizontal | 200 W/m.K Horizontal | 250 W/m.K
| 200 W/m.K
|
