Thermal Spread Tape ST-TDTS01

Feature:

Excellent adhesive

Excellent thermal radiation

Fast thermal diffusion effect

Thin

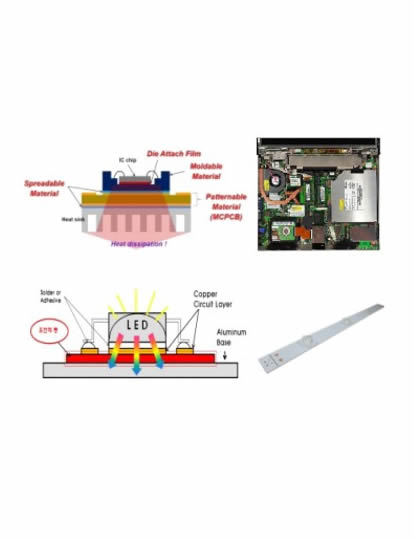

Application for TV, Display, Notebook Computer, Mobile Phone, heat sink assembly

Storage condition；20-25℃，60±10%

Laminating Layer Structure:

Ceramic coating layer

Copper foil substrate layer

Acrylic adhesive layer

PET release liner layer

Thermal Spread Tape ST-TDTS04

Feature:

Single side acrylic conductive fabric tape with excellent adhesive force

Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness

Easy to handle on small products

Shielding EMI

Application for TV, Display, Notebook Computer, Mobile Phone, heat sink assembly

Storage condition；23±5℃，50±10%

Laminating Layer Structure:

Block insulating liner(radiation)

PET Film

Thermal radiation and diffusion adhesive liner

Copper foil

Thermal diffusion adhesive

Release film

Thermal Spread Tape ST-TDTS05

Feature:

Single side acrylic conductive tape with excellent adhesive force

Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness

Easy to handle on small products

Shielding EMI

Application for TV, Display, Notebook Computer, Mobile Phone

Storage condition；23±5℃，50±10%

Laminating Layer Structure:

White insulator

PET film

Radiation and diffusion adhesive liner

Aluminum foil

Radiation and diffusion adhesive liner

Copper foil

Thermal diffusion

PET film

Thermal Spread Tape ST-TDTS06

Feature:

Single side adhesive tape with excellent adhesive force

Excellent heat diffusion and bonding performance

Application for Notebook Computer, Mobile Phone,Display

Storage condition；23±5℃，50±10%

Laminating Layer Structure:

PET film

Radiation and diffusion adhesive liner

Copper foil

Thermal diffusion adhesive layer

Release liner

Thermal Spread Tape ST-TDTS07

Feature:

Single side adhesive tape with excellent adhesive force

Excellent heat diffusion and bonding performance

Application for Notebook Computer, Mobile Phone,Display

Storage condition；23±5℃，50±10%

Laminating Layer Structure:

PET film

Radiation and diffusion adhesive liner

Aluminum foil

Thermal diffusion adhesive layer

Release liner

Thermal Spread Tape ST-TDTS11

Feature:

Single side acrylic and thermal conductive tape with excellent adhesive force

Using mixed adhesive with excellent thermal conductivity, heat resistance and retentiveness

Easy to handle on small products

Shielding EMI

Application for TV, Display, Notebook Computer, Mobile Phone, Heat Sink Assembly

Storage condition；23±5℃，50±10%

Laminating Layer Structure:

Conductive adhesive

PET Base

Conductive adhesive

Release film

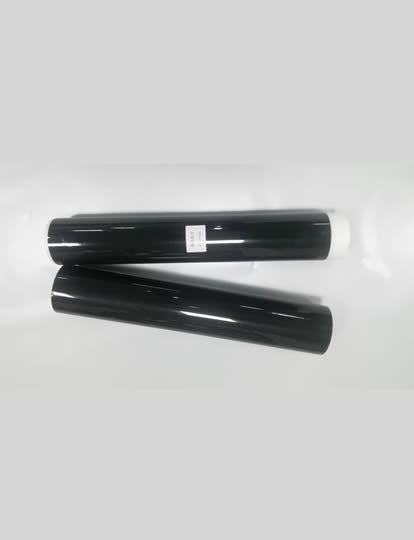

50-1000mm*200m/Roll

Specification

		ST-TDTS01	ST-TDTS04	ST-TDTS05	ST-TDTS06	ST-TDTS07	ST-TDTS11
Items	Test Method	Value	Value	Value	Value	Value	Value
Thickness(excluding release liner)	ASTM D 3652	50±10%（μm）	65±10%（μm）	85±10%（μm）	53±10%（μm）	80±10%（μm）	85±10%（μm）
Color	Vision		Black	White	Black	Black	Gray
180° Peeling Strength	ASTM D 3330	SUS MIN 1000gf/25mm	MIN 1100gf/25mm	MIN 1100gf/25mm	MIN 1100gf/25mm	Average 1100gf/25mm	MIN 1100gf/25mm
Thermal conductivity	ASTM E 1461	180 W/m.K	250 W/m.K Horizontal	200 W/m.K Horizontal	250 W/m.K	200 W/m.K
