Thermo Electric Temperature Control Module for Engineering Research OEM Sale
Thermo Electric Temperature Control Module for Engineering Research OEM Sale
Description
Compact Design
Precise Temperature Control High Reliability
High COP
RoHS Compliant
SERIES PTAA
|
Model |
Description |
Voltage (DC V) |
Initial Current |
Steady- state Current |
Electric Power |
Qcmax (DT=0) |
Weight |
Dimension |
|

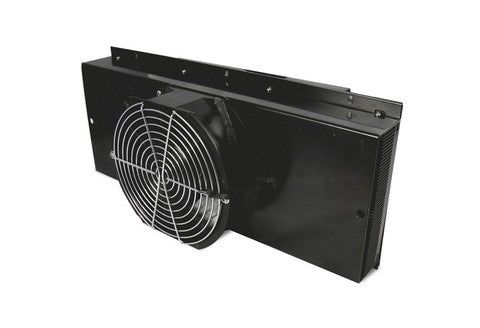

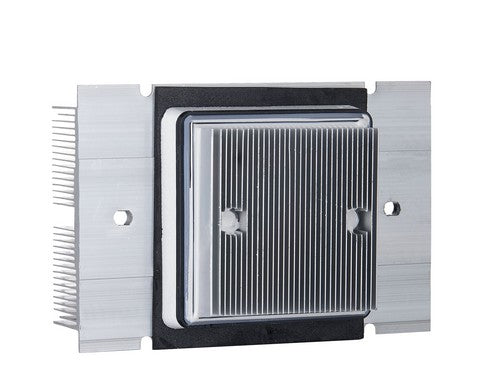

PTAA-024-A |
Air-to-Air-024-12-22 |
12Max15 |
2,7 |
2.4 |
29 |
24 |
0.6 |
80*62*105 |
|
PTAA-024-B |
Air-to-Air-024-12-22 |
12Max15 |
2,7 |
2.4 |
29 |
24 |
1.0 |
115*95*142 |
|
PTAA-040 |
Air-to-Air-040-12-22 |
12Max15 |
7 |
6.3 |
76 |
40 |
1.8 |
160*122*147 |
|
PTAA-055 |
Air-to-Air-055-12-22 |
24Max30 |
3,4 |
3.1 |
74.5 |
55 |
1.65 |
180*95*142 |
|
PTAA-060 |
Air-to-Air-060-12-22 |
12Max15 |
7,2 |
5.7 |
74 |
60 |
2.5 |
230*122*146 |
|
PTAA-070 |
Air-to-Air-070-24-22 |
24Max30 |
4,7 |
3.6 |
91 |
70 |
2.5 |
230*122*152 |
|
PTAA-100 |
Air-to-Air-100-24-22 |
24Max30 |
6,6 |
5.6 |
134 |
100 |
4.0 |
300*152*180 |
|
PTAA-150 |
Air-to-Air-150-48-44 |
48Max56 |
5 |
3.9 |
190 |
150 |
5.1 |
300*152*180 |
|
PTAA-200 |
Air-to-Air-200-48-44 |
48Max56 |
7,2 |
5.6 |
270 |
200 |
6.6 |
400*152*180 |
|
PTAA-250 |
Air-to-Air-250-24-44 |
24Max30 |
15,1 |
12.2 |
291 |
250 |
6.6 |
400*152*180 |
|
PTAA-480 |
Air-to-Air-480-48-44 |
48Max56 |
13,1 |
9.7 |
463 |
480 |
13.2 |
300*330*225 |
SERIES PTDA
|
Model |
Description |
Voltage (DC V) |
Initial Current |
Steady- state Current |
Electric Power |
Qcmax (DT=0) |
Weight |
Dimension |
|

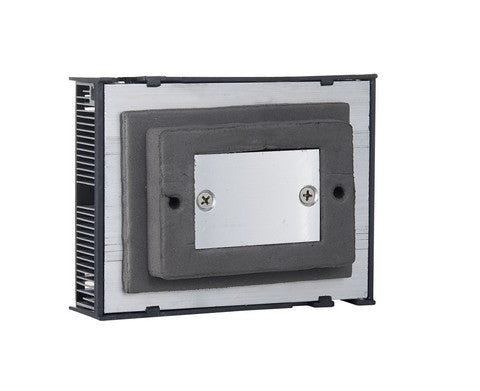

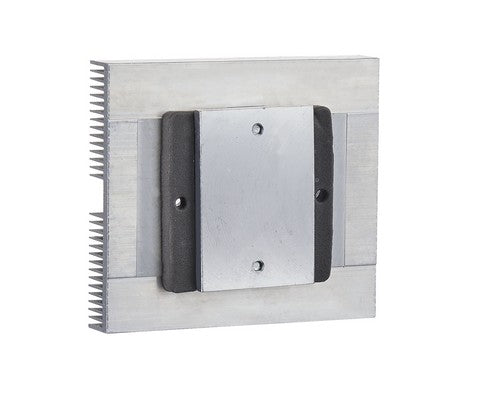

PTDA-011 |
Direct-to Air-011-05-02 |
5Max5.5 |
2.7 |
2.2 |
11 |
11 |
0.2 |
50*44*56 |
|
PTDA-014 |
Direct-toAir-014-12-02 |
12Max15 |
2.3 |
1.8 |
22 |
14 |
0.2 |
60*40*55 |
|
PTDA-020 |
Direct-to Air-020 -12-02 |
12Max15 |
3.2 |
2.7 |
33 |
20 |
0.56 |
100*65*82 |
|
PTDA-044 |
Direct-to-Air-044-24-02 |
24Max30 |
2.8 |
2.2 |
46 |
44 |
0.6 |
120*100*74 |
|
PTDA-075 |
Direct-to-Air-075-12-02 |
12Max15 |
8.1 |
7.2 |
86 |
75 |
1.7 |
230*122*86 |
|
PTDA-105 |
Direct-to-Air-105-24-02 |
24Max30 |
6.7 |
4.9 |
114 |
105 |
1.7 |
248*82*98 |
|
PTDA-135 |
Direct-to-Air-135-24-02 |
24Max30 |
7.8 |
6.9 |
166 |
135 |
2.9 |
300*152*92 |
|
PTDA-160 |
Direct-to-Air-160-24-02 |
24Max30 |
9 |
7.8 |
178 |
160 |
3.5 |
300*152*100 |
|
PTDA-280 |
Direct-to-Air-280-24-02 |
24Max30 |
14.8 |
12.3 |
295 |
280 |
6.1 |
400*180*135 |
SERIES PTLA
|
Model |
Description |
Voltage (DC V) |
Initial Current |
Steady- state Current |
Electric Power |
Qcmax (DT=0) |
Weight |
Dimension |
|

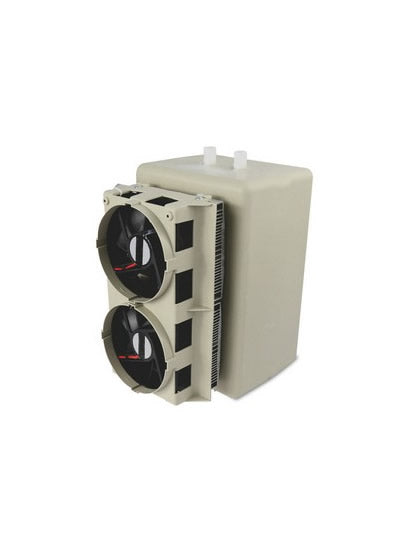

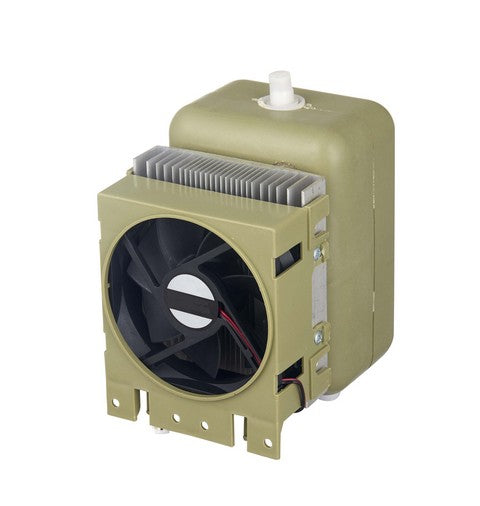

PTLA-024 |
Liquid-to-Air-024-12-02 |
12Max15 |
2.8 |
2.2 |
29 |
24 |
0.5 |
65*60*81 |
|
PTLA-045 |
Liquid-to-Air-045-24-02 |
24Max30 |
3.2 |
2.8 |
60 |
45 |
1.3 |
160*122*92 |
|
PTLA-075 |
Liquid-to-Air-075-24-02 |
24Max30 |
4.3 |
3.4 |
89 |
75 |
2.0 |
230*122*92 |
|
PTLA-115 |
Liquid-to-Air-115-24-02 |
24Max30 |
6.6 |
5.3 |
140 |
115 |
3.2 |
300*152*98 |
|
PTLA-140 |
Liquid-to-Air-140-24-02 |
24Max30 |
6.8 |
5.5 |
150 |
140 |
2.3 |
300*122*92 |
|
PTLA-160 |
Liquid-to-Air-160-24-02 |
24Max30 |
7.8 |
6.6 |
178 |
160 |
3.7 |
300*152*106 |
|
PTLA-200 |
Liquid-to-Air-200-24-02 |
24Max30 |
8.6 |
7.4 |
206 |
200 |
4.1 |
300*180*106 |
|
PTLA-400 |
Liquid-to-Air-400-24-02 |
24Max30 |
16.5 |
13.3 |
319 |
400 |
9.2 |
330*200*175 |
SERIES PTDL&PTLL
|
Model |
Description |
Dimension |
|

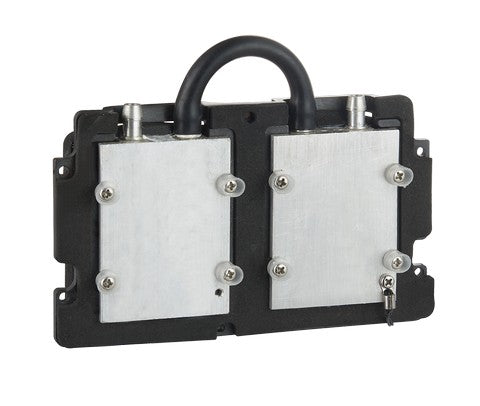

PTDL-060 |
Direct-to-Liquid-060-12-00 |
100*60*38 |
|
PTDL-210 |
Direct-to-Liquid-210-24-00 |
240*60*40 |
|
PTLL-060 |
Liquid-to-Liquid-060-12-00 |
100*60*52 |
|
PTLL-120 |
Liquid-to-Liquid-120-24-00 |
140*60*52 |
|
PTLL-210 |
Liquid-to-Liquid-210-24-00 |
240*60*54 |
