Specifications

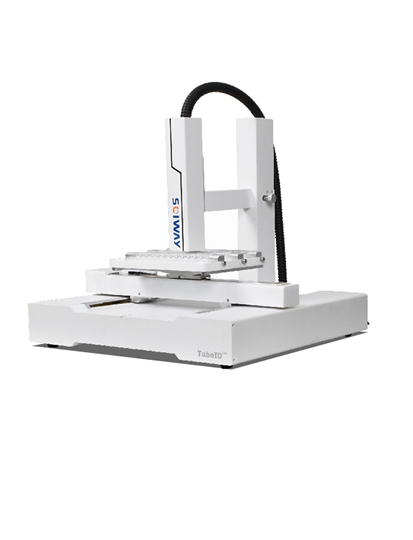

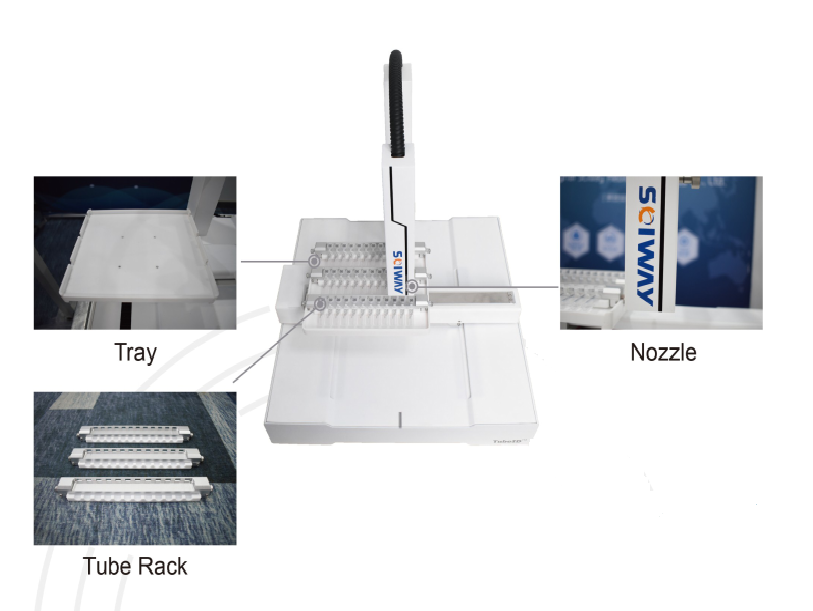

TubeID is directly printed on the surface of sample containers, printing speed of about 1 test tube/second, suitable for all kinds of specifications and materials of laboratory sample containers.
- High throughput operation. About 1 tube /s
- Patented technology, the caps of tubes and the tube bodies printed together.
- Automated typing&releasing, placed into tube’s rack row.
- Wide application range. Support printing glass slides and a variety of specifications and materials of test tubes.
- Patent Ink. Clear, Quick-dry, Waterproof, alcohol resistant, -80℃-200℃ tolerance, long-lasting, Variety optional colors to match tube color.
- Customized Display Content. Chinese, English, bar code, QR code, 2-6 lines of text. Unlimited print format and content style.
- Edge Computing No software installation; Multiple built-in monitoring points; Each device has a unique URL, online upgrade, rapid iteration, remote maintenance.
- More smart Designs. Low solvent consumption; Rapid heating of the nozzle to maintain ink activity; Automatic cleaning/reverse cleaning nozzle; Long-term standby automatically into the cleaning sleep state.
TubeID:
Print Speed:about 1 tube/s
Communication Mode: Ethernet
Ink Characteristics: High Adhesion, Quick-dry, Waterproof, Alcohol Resistance, Invisible Ink, Monochrome Ink(black for Ti-2040 and Ti-2060; Red, Green, Yellow, Blue for Ti-2060; White for Ti-2060W only)
Sample Type: Eppendorf tube(0.6ml, 1.5/2ml and more),Cryogenic tube(1.8/3.6ml), Injection vials, Microscope slides
Materials and Print Location: Top(cap),Side and bottom (body), Glass, Plastic, Metal, Ceramic and label sticker
Barcode: 39 code, ITF,EAN-13, EAN-8, UPC-A, UPC- E, 128 code, GS1 DataBar
QR Code: QR code (21*21/25*25/29*29), DataMatrix (8*32/16*16/16*36/16*48/18*18/20*20/22*22/24*24)
Graphics: Logo,Warning sign, Manufacturing marks and customized graphics
Scan Mode: Fixed scanner, Hand-held scanner
Print Lines: English letter/number/symbol: 6 lines, Chinese character:2 lines
Data Import: Microsoft Excel, LIMS,LIS,HIS import, Dynamic expression, manual editing, customized storage set for invoking
Operation Environment: Chrome,IE 10 or above
Character Height: 2-10mm
Print Content: Numbers, English letters(upper and lower case), Symbols, Chinese Characters(GB2312)
Size and Weight (all three items in one package):
Label printer: Ti-2040/2060:516*500*420mm, Weight:25kg
Ink-jet device: 400*395*527mm, Weight:25kg
Mobile Desk: Ti-Table:680*680*746mm, Weight:25kg
Voltage:AC100-120/220-240V±10% 50/60Hz 210VA
