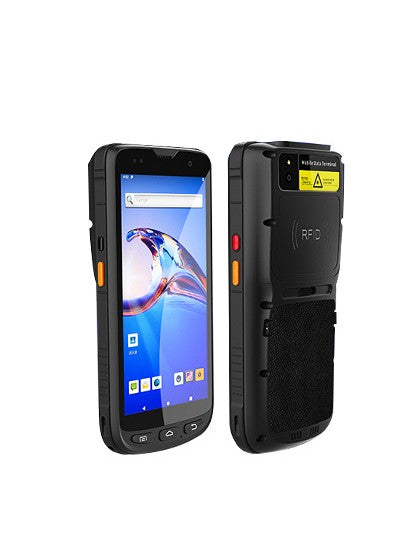

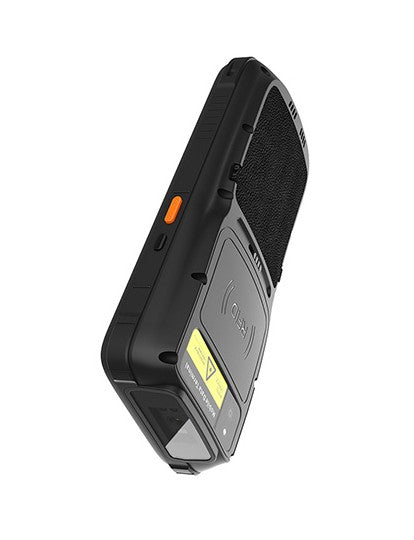

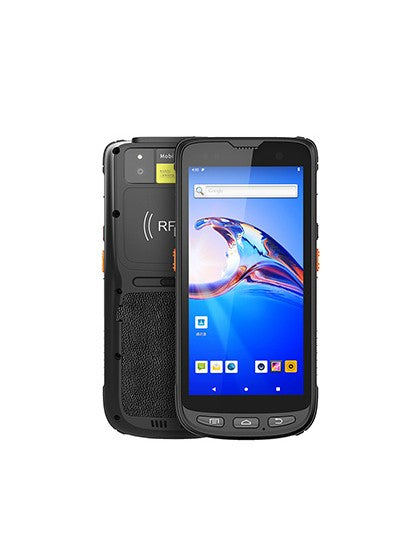

UHF RFID Handheld Reader VH-H78 for Commercial and Industrial Inventory Control Lot Sale
UHF RFID Handheld Reader VH-H78 for Commercial and Industrial Inventory Control Lot Sale
Couldn't load pickup availability
1.Adopt industry-leading high-end octa-core processor solution, Android9.0 OS，equip with 2+16GB/3+32GB/4+64GB storage combination, to ensure smooth operation of system applications.
2. 5.5-inch high-definition display screen, adopts a full-fitting process, which effectively improves the display brightness of the screen and breaks the boundary of the field of vision.
3. High-precision barcode scanning engine, can quickly and accurately read out various 1D and 2D barcodes, as well as defaced, bent, low-quality barcodes and etc.
4. Adopt cost-effective module for UHF reading, with effective reading distance up to 3 meters, which can meet most applications.
Specification
|
Model# |
VH-H78 |
|
Mechanical Index |
|
|
Dimension |
166×79×18±2mm |
|
Packing Size |
195*135*90mm(1pcs) |
|
Net Weight |
600g |
|
Display screen |
5.5 inch IPS HD screen, resolution 720*1440 |
|
Touch screen |
Industrial grade multi-touch capacitive screen |
|
Expansion slot |
1 Sim card slot（MUP-C785）, 1 TF card slot, 2 PSAM card slot（customized） |
|
Communication interface |
1 Type-c interface |
|
Indicator light |
Network indicator light，charging indicator light |
|
Keyboard |
2 scan keys, 3 physical keys |
|
Navigation |
Built-in GPS, Beidou positioning system, error range ±5m |
|
Performance Parameter |
|
|
CPU |
MT 6771 octa-core 64bit processor, TSMC 12nm process technology Four A73 large cores+Four A53 small cores，main frequency 2.0GHz+2.0GHz |
|
Memory |
RAM：2GB ROM：16GB（standard） |
|
RAM：3GB ROM：32GB（optional） |
|
|
RAM：4GB ROM：64GB（optional） |
|
|
OS |
Android 9.0 |
|
Expanded memory |
Support 256GB Micro SD card |
|
Data Communication |
|
|
4G |
TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20 |
|
3G |
WCDMA(850/1900/2100MHz); |
|
2G |
GSM/GPRS/Edge（850/900/1800/1900MHz） |
|
WIFI |
2.4G/5G dual frequency，compliant with IEEE802.11a/b/g/n/ac |
|
Bluetooth |
Compliant with Bluetooth4.2 |
|
Working Environment |
|
|
Operating temperature |
-10℃～50℃ |
|
Storage temperature |
-20℃～70℃ |
|
Relative humidity |
5%～95% non-condensing |
|
Protection level |
Host IP65 |
|
Battery Performance |
|
|
Battery capacity |
4900mAh Lithium polymer battery |
|
9000mAh Lithium polymer battery（optional），if choosing this battery, the back shell will be different (thickness of the back shell will increase) |
|
|
Standby time |
360 hours if turn off wireless communication in theory |
|
Charging time |
<2 hours（support fast charging） |
|
Camera |
|
|
Front camera |
500W pixel |
|
Rear camera |
1300W pixel，with flash, auto-focus function |
|
2100W pixel，with flash, auto-focus function（optional） |
|
|
NFC（optional） |
|
|
Frequency |
13.56MHz |
|
Protocol |
ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 and etc. |
|
Tag standard |
M1 card（S50，S70），CPU card，NFC tag and etc. |
|
Read distance |
3-5cm |
|
UHF RFID(optional) |
|
|
Frequency |
865-868MHz, 902-928MHz |
|
Protocol |
EPC C1 GEN2ISO18000-6C |
|
Read distance |
0~3 meters (related to tag and environment) |
|
Barcode scanning（optional） |
|
|
2D barcode scanning engine |
NLS-CM60/NLS-3396/NLS-2596//NLS-3596/ZebraSE4710/ZebraSE2100/HoneywellN6603其它 |
|
Support 1D/2D barcode types |
Code39、Code93、Code128、Codebar、EAN-13、EAN-8、UPC-A、UPC-E、ITF14、UCC/EAN-128、ITF25、Matrix25、EAN-128、ISBN and etc. PDF417,MicroPDF417,Composite,RSS,TLC-39 ,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode, PostalCodes,USPostNet,USPlanet,UKPostal,Australian Postal,JapanPostal,DutchPostal and etc. |
|
Accessories |
|
|
Standard |
1 Lithium polymer battery, 1 charger, 1 Type-c charging cable |
|
Optional |
Backpack, charging stand |
