1.Simple body, rounded corner design, taking into account the comfortable grip and the drop resistance of the machine itself;

2.Using industry-leading 12nm process technology high-end CPU, octa-core 64-bit processor, the main frequency up to 2.0GHz; support Android9.0 system；

3.Using Corning Gorilla 5.5 inch IPS HD display, 18:9 screen ratio design, resolution up to 1440*720;

4.Powerful fast charging function, equipped with a 9000mAh polymer lithium battery, long-lasting battery life, support fast charging function, and the single charging time is shorter;

5.Powerful WiFi roaming function, which can realize seamless switching of Wifi hotspots and maintain an uninterrupted network connection experience;

6.Excellent IndyR2000 RF engine, built-in UHF omnidirectional four-arm helical antenna, stable and effective reading distance up to 20m.

Specification

Model#	VH-83
Performance Index
Dimension	1667931±2mm（excluding shield and handle）
Packing Size	220197115mm(1pcs)
Net weight	650g
Display screen	5.5 inch IPS HD screen，resolution 720*1440
Touch screen	Corning gorilla three generation industrial grade multi-touch capacitive screen
Expansion slot	1 Sim card slot（MUP-C785） 1 TF card slot 1 PSAM card slot（MUP-C785）
Communication interface	1 Type-c interface
Indicator light	Network indicator light，charging indicator light
Keyboard	Scan key, Function key
Navigation	GPS/Beidou positioning system, error range ±5m
CPU	MT6771 octa-core 64-bit processor Four large core A73+four small core A53，main frequency 2.0GHz
Memory	RAM：2GB ROM：16GB (standard） RAM：4GB ROM：64GB (optional）
OS	Android9.0
Expanded memory	Support 256GB Micro SD card
4G	TD-LTEBand38/39/40/41FDD-LTEBand1,2,3,4,7,17,20
3G	WCDMA(850/1900/2100MHz);
2G	GSM/GPRS/Edge（850/900/1800/1900MHz）
WIFI	2.4G/5G dual frequency，compliant with IEEE802.11a/b/g/n/ac Support WiFi roaming function(seamless switching)
Bluetooth	Compliant with Bluetooth4.2
Operating temperature	-20℃～50℃
Storage temperature	-20℃～70℃
Relative humidity	5%～95% non-condensing
Protection level	Host IP65
Standard accessories	1 Lithium polymer battery, 1 Charger, 1 Type-c charging cable
Optional accessories	Charging stand
Battery capacity	9000mAh Lithium polymer battery，voltage 3.8V
Standby time	360 hours if turn off wireless communication in theory
Charging time	<2 hours (support 5V2A/PE2.0 16W fast charging function）
Working time	>14 hours（one full charging）
Front camera	500W pixel
Rear camera	1300W/2000W pixel optional, with flash, auto focus function
Frequency	13.56MHz
Protocol	ISO14443A/B ISO15693, NFC-IP1，NFC-IP2 and etc.
Tag standard	M1 card（S50，S70），CPU card，NFC tag and etc.
Read distance	5-10cm
2D
Scanning engine	Zebra SE4710/Zebra SE2100 and others
Support types	PDF417,MicroPDF417,Composite,RSS,TLC-39,Datamatrix,QRcode,MicroQRcode,Aztec,MaxiCode,PostalCodes,USPostNet,USPlanet,UKPostal,AustralianPostal,JapanPostal,DutchPostal and etc.
UHF RFID
Frequency	865-868MHz, 902-928MHz
Protocol	EPC C1 GEN2/ISO18000-6C
Read distance	0~20 meters (related to tag and environment)
HF
Frequency	13.56MHz
Protocol	ISO15693、ISO14443
Read distance	0-7cm （related to tag and environment）
CPU card	Support read and write CPU card, use with PSAM
LF	125K/134.K ear tag
2.45G（customized）	Read distance 200 meters 200 tags for once reading

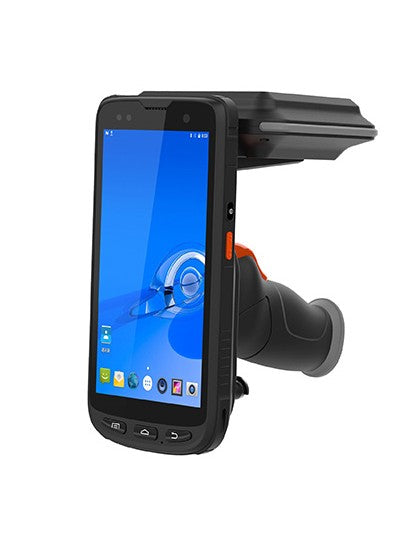

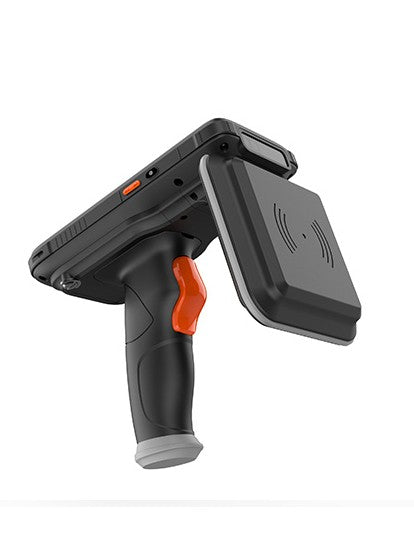

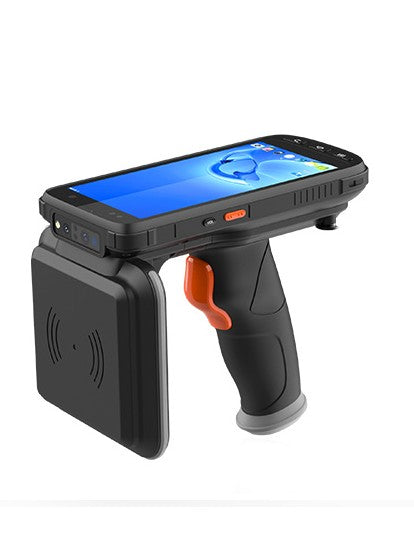

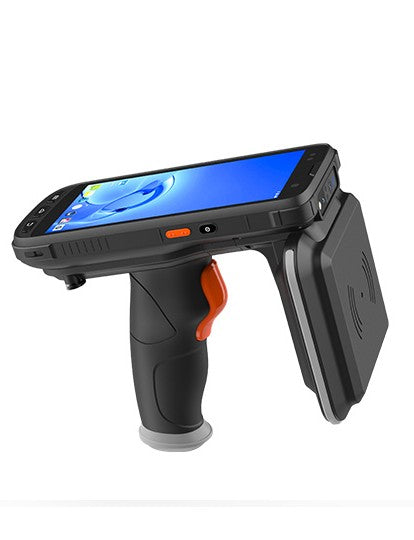

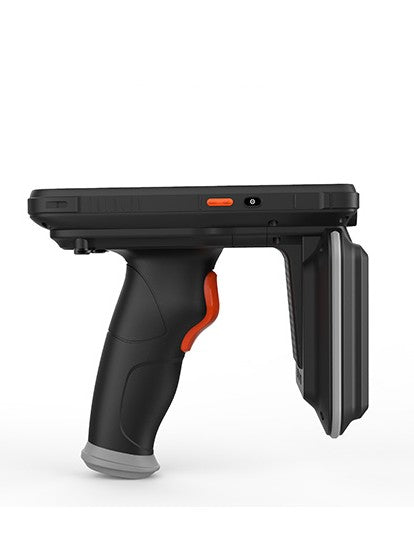

Ultra Long Range UHF RFID Handheld Reader VH-83 for Commercial and Industrial Inventory Control Lot Sale
