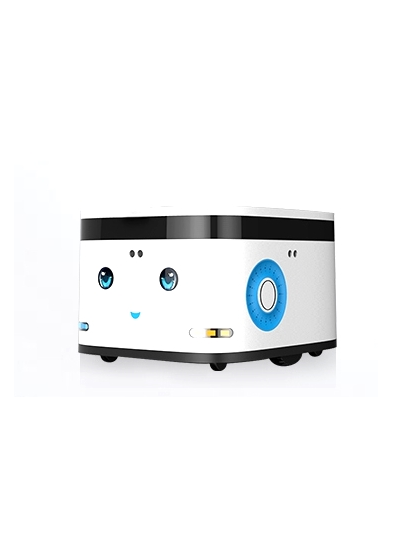

Autonomous AGV Chassis for Universal Solution OEM Sale

Universal Chassis Robot can be loaded with different APP at practical demand.

Specification

Aker C (Cube Chassis):

Name：Aker C (Cube Chassis)

Robot Size（mm）： L456*W568*H320

Packing Size:0.72*0.62*0.58M

Gross Weight: 48Kg

Battery type：lithium battery

Battery Capacity（AH）：20/40ah

Continuous working hours（H）：>10

Charging time（H）：<5

Charger input：AC100~240V/50Hz

Charging pile output：DC24V/5A

Power：about 120W

Touch screen type：no

Touch screen size (inches)：no

Touch screen resolution：no

Color：White +black

CPU：RK3399,Dual-core cortex-A72+ Quad-core cortex-A53

GPU：Mali-T864

RAM：4G

ROM：32G

OS：Android 7.1.2

Speed（m/s）：0~1.0

Load capacity（kg）：50

Motor power（W）：60w*2

Noise in 1 meter moving（dB）:≤55

Braking distance（mm： ≤100

Turning radius（mm）：0

Obstacle crossing height（mm）：15

Ditch crossing width（mm）：35

Gradeability（°）：3

Drive wheel：5inch*2

Universal wheel：2inch*4

Ultrasonic sensor：4

Odometer：yes

Lidar：25m/40m

Speaker：4inch（4Ω20W）

LED Turn Light：4set

Chassis LED light：1set

Speech Recognition：no

Face recognition：customizable

Chassis movement：support to develop

SLAM automatic mapping, autonomous navigation ：support to develop

Real-time path planning and automatic obstacle avoidance ：support to develop

Automatic recharge：support to develop

Power supply device：DC12V/3A

Router：no

HDMI：DC12V3A

USB：1

Ethernet：no

Case Pictures
